的PCIExpress服务器双槽热插拔控制器 PCIExpress Server Dual Slot Hot Plug Controller
You"ll save time installing circuit boards into system backplanes by using this positive voltage hot swap controller ic, developed by Texas Instruments. Its typical operating supply voltage is 12|3.3 V. This component will be shipped in tray format. This hot swap controller has an operating temperature range of -40 °C to 85 °C. This device has a typical operating supply voltage of 12|3.3 V. Its minimum operating supply voltage of 10.8|3 V, while its maximum is 13.2|3.6 V.
电源电压DC 10.8V min
输出接口数 6
输入电压DC 13.2 V
输出电压 5.00 V
通道数 6
耗散功率 1.03 W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 13.2 V
电源电压Min 3 V
输入电压 13.2 V
安装方式 Surface Mount

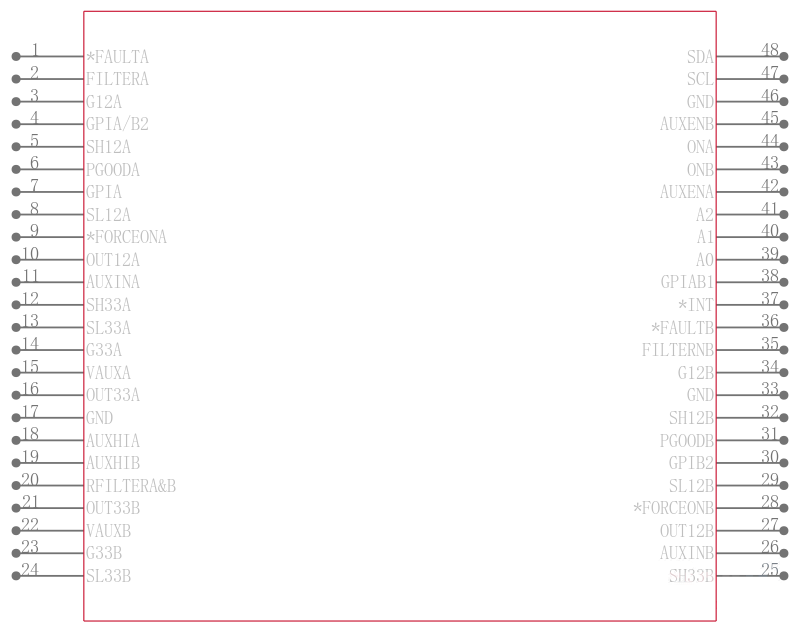

引脚数 48

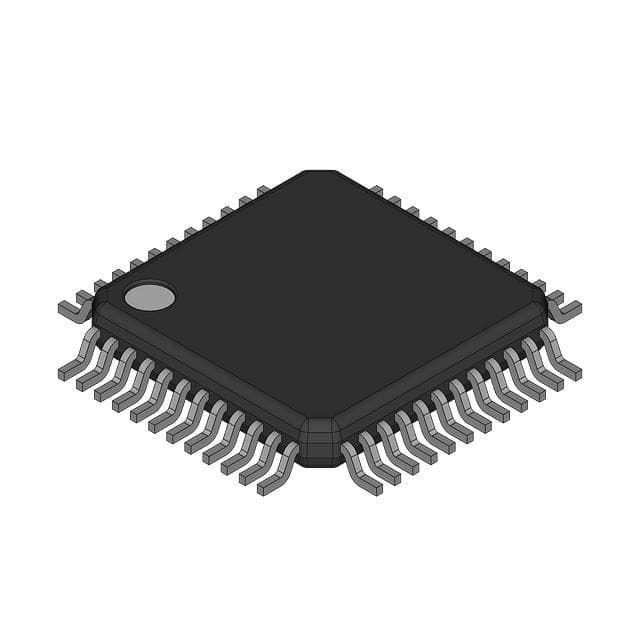

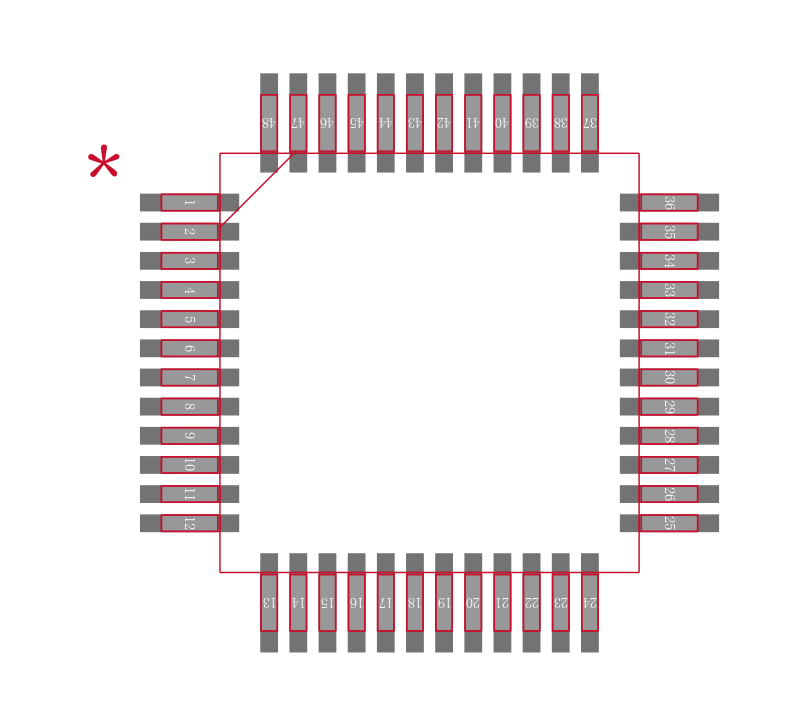

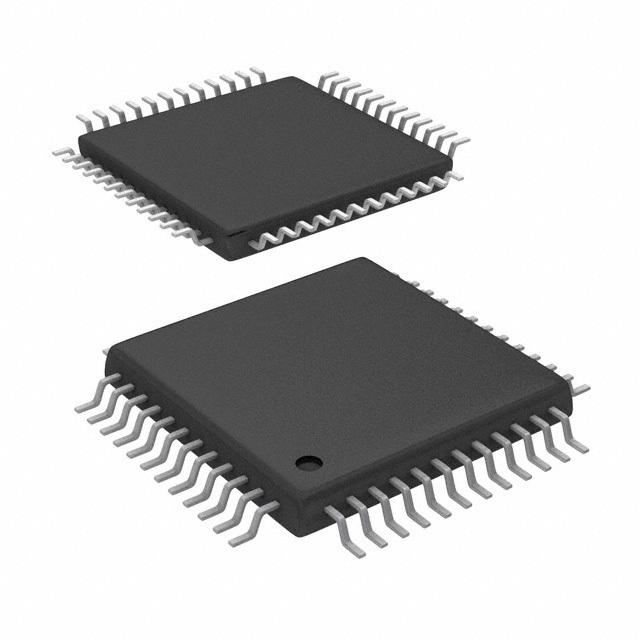

封装 TQFP-48
高度 1 mm
封装 TQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS2363PFB TI 德州仪器 | 当前型号 | 当前型号 |
TPS2363PFBR 德州仪器 | 完全替代 | TPS2363PFB和TPS2363PFBR的区别 |
TPS2363PFBG4 德州仪器 | 完全替代 | TPS2363PFB和TPS2363PFBG4的区别 |
TPS2363PFBRG4 德州仪器 | 完全替代 | TPS2363PFB和TPS2363PFBRG4的区别 |
