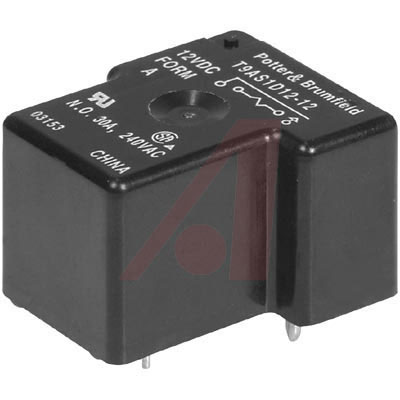

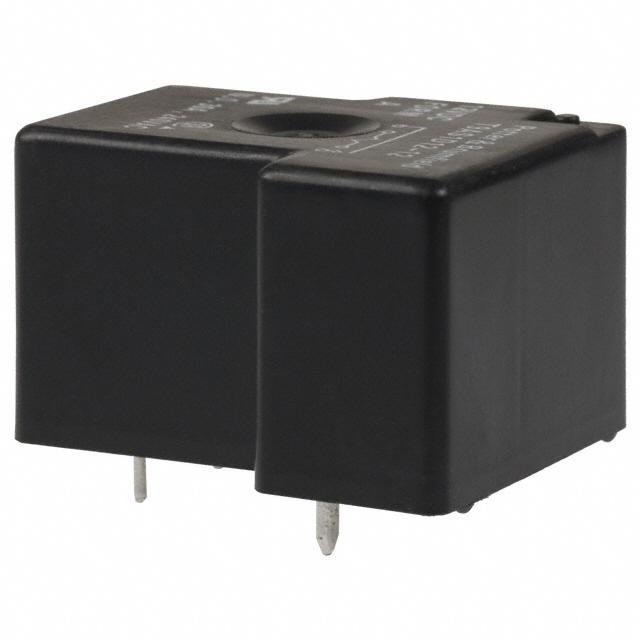

Power Relay 110VDC 30A SPST-NO 32.51mm 27.43mm 20.4mm Through Hole

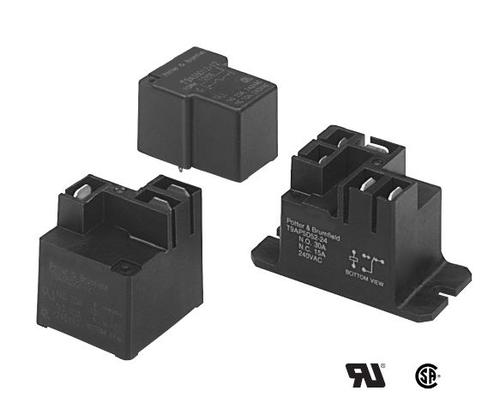

T9A Power Relay, option for load connections via QC terminals. Standard 30 Amps global footprint.
艾睿:
Power Relay 110VDC 30A SPST-NO32.51mm 27.43mm 20.4mm THT
Allied Electronics:
Potter & Brumfield: T9AS1D12-110
Chip1Stop:
Electromechanical Relay SPST-NO 30A 110VDC 12.1KOhm Through Hole
Verical:
Electromechanical Relay 110VDC 12.1KOhm 30A SPST-NO 32.51mm 27.43mm 20.4mm THT Industrial Relay
Newark:
# TE CONNECTIVITY T9AS1D12-110 Power Relay, SPST-NO, 110 VDC, 30 A, T9A Series, Through Hole, DC Monostable
MASTER:
Power Relay 110VDC 30A SPST-NO32.51x27.43x20.4mm THT
Online Components:
Power Relay 110VDC 30A SPST-NO 32.51mm 27.43mm 20.4mm THT
Electro Sonic:
Power Relay 110VDC 30A SPST-NO32.51x27.43x20.4mm THT
输入电压DC 110 V
触点类型 SPST-NO
功耗 1 W
触点额定电流 30.0 A
线圈电压 110 VDC
线圈电流 9 mA
线圈功率DC 1.00 W
线圈电阻 12.1 kΩ
线圈电压DC 110 V
开关电流Max 30 A
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 PCB
长度 32.51 mm
宽度 27.4 mm
高度 20.4 mm
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
