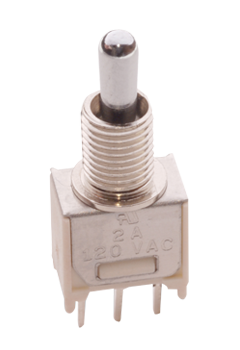

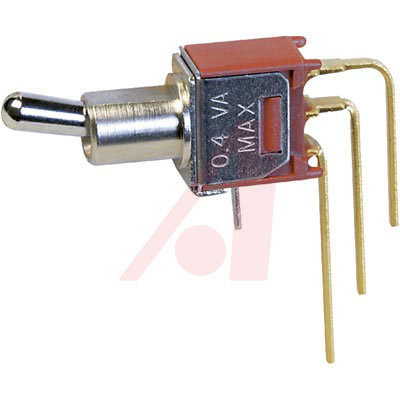

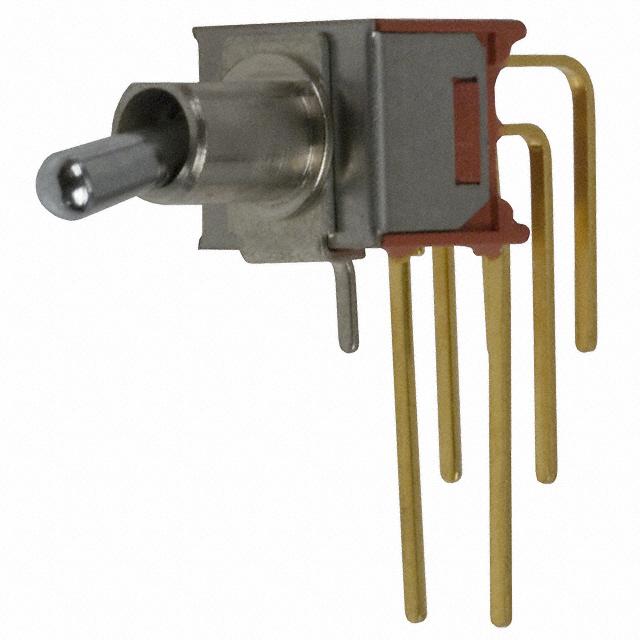

T201MH9AVBE

Switch Toggle ON None ON DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket

DPDT Contact Form, Stainless Steel Body , Epoxy Seal, T Series Subminiature Toggle Switches

** Toggles:** Brass, chrome plated. ** Bushings:** Brass, nickel plated 10-48UNS-2A. ** Included Hardware:** Nut, locking ring, and lockwasher. ** Switches Not Right Angle Mounted and without Support Bracket. Contact Rating:** 3 A @ 120 VAC or 28 VDC UL for all models with On-None-On switch function, all others 2 A @ 120 VAC or 28 VDC. ** End Contacts:** Coin silver, silver plated. ** Center Contact and Terminals:** Brass, silver plated. ** Switches with Right Angle Mounting or Support Bracket. Contact Rating:** 0.4 VA max. at 20 VAC or VDC max. ** Contacts and Terminals:** Brass, with gold plate over nickel plate, 0.1" terminal spacing.
