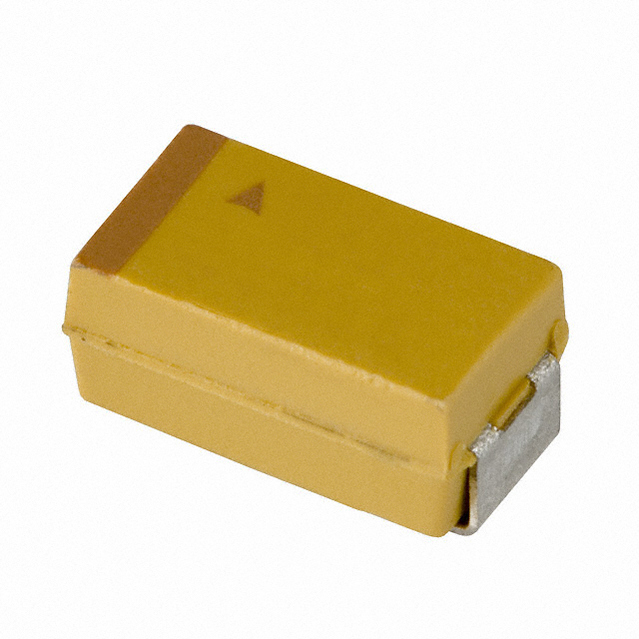

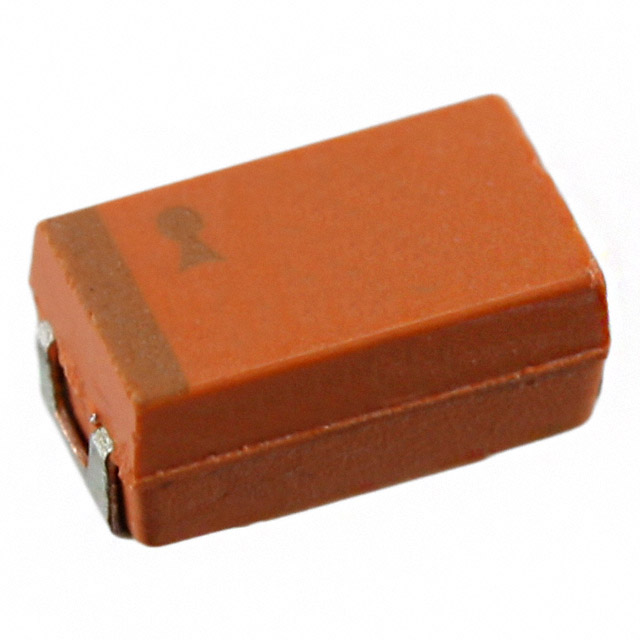

AVX TAJC227K010RNJ 表面贴装钽电容, TAJ系列, 220 µF, ± 10%, 10 V, 2312 [6032 公制], C
钽器
得捷:
CAP TANT 220UF 10% 10V 2312
立创商城:
220uF ±10% 10V
欧时:
SMD Chip Tantalum 2312 220uF 10Vdc 10%
艾睿:
This TAJC227K010RNJ tantalum solid capacitor from AVX provides a high capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 10 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 22 μA. This product is 6 mm long, 2.6 mm tall and 3.2 mm deep. It has a tolerance of 10%. Its capacitance value is 220uF.
安富利:
Cap Tant Solid 220uF 10V C CASE 10% 6 X 3.2 X 2.6mm SMD 6032-28 0.5 Ohm 125°C T/R
Chip1Stop:
Cap Tant Solid 220uF 10V C CASE 10% 6 X 3.2 X 2.6mm Inward L SMD 6032-28 0.5 Ohm 125℃ T/R
TME:

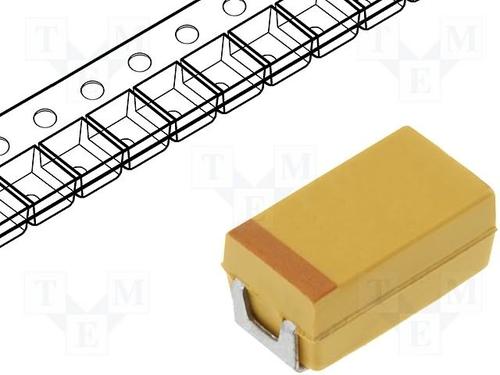

Capacitor: tantalum; 220uF; 10VDC; SMD; Case: C; 2312; ±10%
Verical:
Cap Tant Solid 220uF 10V C CASE 10% 6 X 3.2 X 2.6mm Inward L SMD 6032-28 0.5 Ohm 125C T/R
Newark:
# AVX TAJC227K010RNJ Surface Mount Tantalum Capacitor, 220 µF, 10 V, TAJ Series, ± 10%, 2312 [6032 Metric]
儒卓力:
**TC 220uF 10V 10% Case C **
Win Source:
CAP TANT 220UF 10V 10% 2312
额定电压DC 10.0 V
工作电压 10 VDC
电容 220 µF
等效串联电阻ESR 500 mΩ
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装 6032
长度 6 mm
宽度 3.2 mm
高度 2.6 mm
封装 6032
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
