TEXAS INSTRUMENTS TPS6209733RWKT 芯片, 直流/直流转换器, 降压, 2.5MHZ, VQFN-11 新
The TPS62097 device is a synchronous step-down converter optimized for high efficiency and noise critical applications. The devices focus on high efficiency conversion over a wide output current range. At medium to heavy loads, the converter operates in PWM mode and automatically enters Power Save Mode operation at light load. The switching frequency is selectable in the range of 1.5 MHz to 2.5 MHz by an external resistor. iDCS-Control is able to be operated in forced PWM mode for low noise operation with a fixed switching frequency.

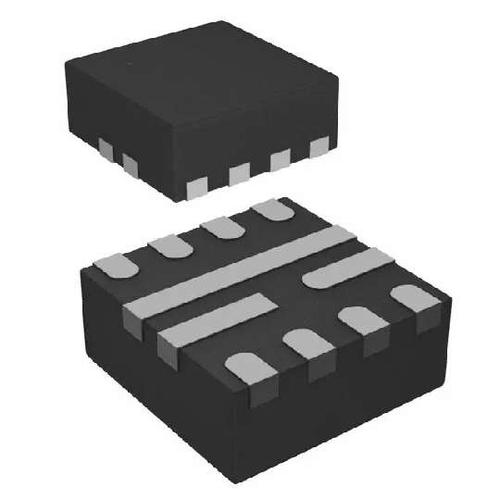

To address the requirements of system power rails, the internal compensation circuit allows a large selection of external output capacitor values in excess of 150 µF. To control the inrush current during the startup, the device provides a programmable soft startup by an external capacitor connected to the SS/TR pin. The SS/TR pin is also used in voltage tracking configurations. The device integrates short circuit protection, power good and thermal shutdown features. The device is available in a 2-mm × 2-mm VQFN package.
输出接口数 1
输出电压 0.8V ~ 6V
输出电流 2 A
针脚数 11
静态电流 40.0 µA
调节输出数 1
开关频率 2.5 MHz
拓扑结构 Buck
输入电压Max 6 V
输入电压Min 2.5 V
输出电压Min 3.3 V
输出电流Max 2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 6 V
安装方式 Surface Mount
引脚数 11
封装 VQFN-11
封装 VQFN-11
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS6209733RWKT TI 德州仪器 | 当前型号 | 当前型号 |
TPS6209733RWKR 德州仪器 | 类似代替 | TPS6209733RWKT和TPS6209733RWKR的区别 |
