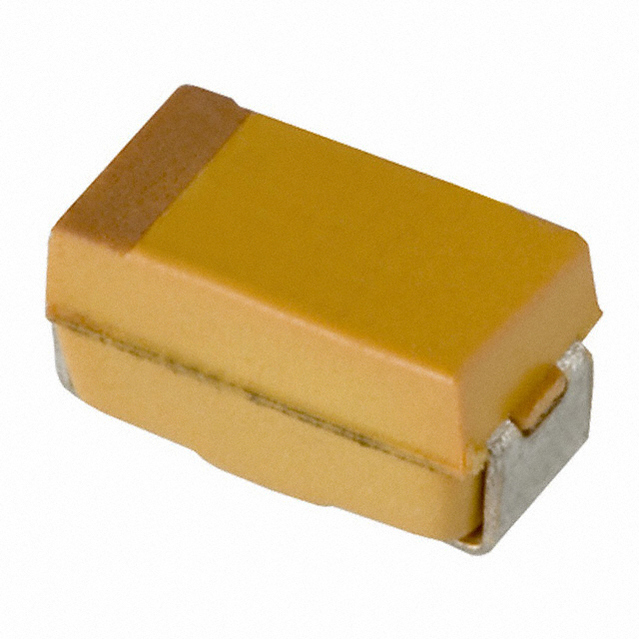

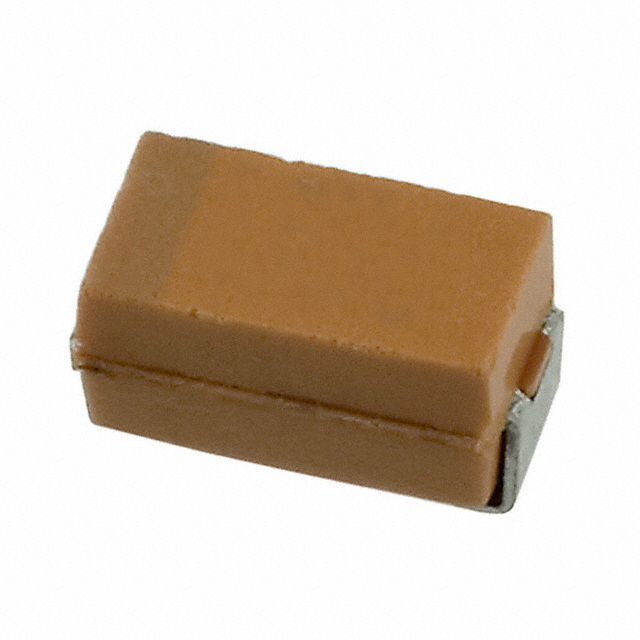

TAJ 系列 15 uF ±20 % 10 V 表面贴装 标准 钽贴片电容
This capacitor from is made from tantalum solid and has a high capacitance value with a low footprint design. It can withstand a voltage of 10 VDC. Its leakage current is 1.5 μA. This solid capacitor has a maximum operating temperature of 125 °C. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 20%. Its capacitance value is 15uF.
额定电压DC 10.0 V
电容 15 µF
等效串联电阻ESR 3.2 Ω
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±20 %
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TAJA156M010RNJ AVX 艾维克斯 | 当前型号 | 当前型号 |
TAJA156K010RNJ 艾维克斯 | 类似代替 | TAJA156M010RNJ和TAJA156K010RNJ的区别 |
TAJB156M010RNJ 艾维克斯 | 类似代替 | TAJA156M010RNJ和TAJB156M010RNJ的区别 |
TAJA156M010YNJ 艾维克斯 | 类似代替 | TAJA156M010RNJ和TAJA156M010YNJ的区别 |
