自动切换电源多路复用器 AUTO-SWITCHING POWER MULTIPLEXER
Multiple different feeders mean greater power distribution management is required. Texas Instruments" power multiplexer can accomplish this. This power mux"s single output can produce a current up to 1.25 A. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This power mux has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电流 1.25 A
供电电流 55 µA
耗散功率 387 mW
输出电流Max 1.25 A
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 387 mW
电源电压 2.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.8 V
输入电压 1.5V ~ 5.5V
安装方式 Surface Mount
引脚数 8

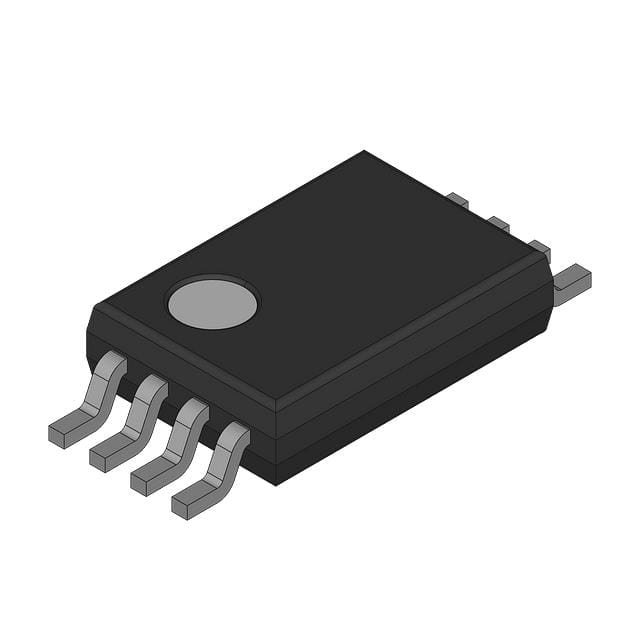

封装 TSSOP-8
封装 TSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
