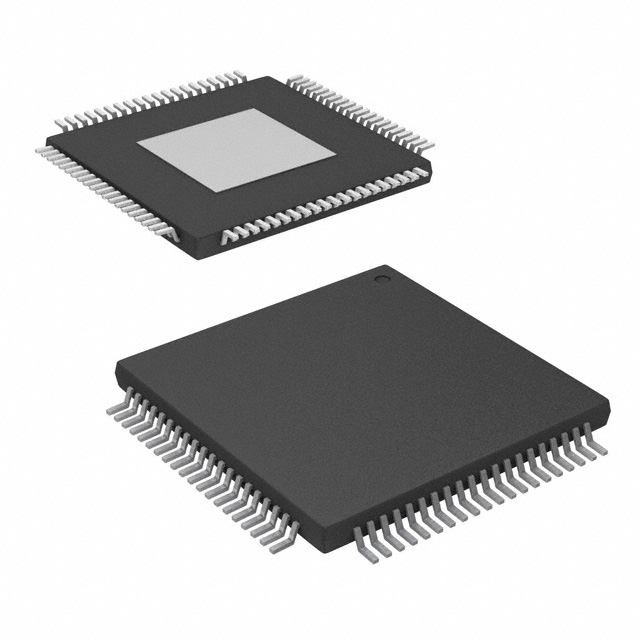

TEXAS INSTRUMENTS TVP5146PFP 芯片, 视频解码器, 10位, 30MSPS, HTQFP-80
The is a high quality, single-chip Digital Video Decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5146 decoder supports the analog-to-digital conversion of component RGB and YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL and SECAM composite and S-video into component YCbCr. This decoder includes four 10-bit 30MSPS analog-to-digital converters ADCs. Preceding each ADC in the device, the corresponding analog channel contains an analog circuit that clamps the input to a reference voltage and applies a programmable gain and offset. A total of 10 video input terminals can be configured to a combination of RGB, YPbPr, CVBS or S-video video inputs.
电源电压DC 1.65V min
供电电流 240 mA
通道数 2
针脚数 80
位数 10
耗散功率 334.5 mW
采样率 30.0 MHz
模数转换数ADC 4
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 334.5 mW
输入通道数 4
电源电压Max 1.95 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 80
封装 TQFP-80
长度 12 mm
宽度 12 mm
封装 TQFP-80
工作温度 0℃ ~ 70℃
产品生命周期 Not Recommended for New Designs
包装方式 Tray
制造应用 通信与网络, 监控器,电视, 成像, 消费电子产品, 信号处理, 视频和目视
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TVP5146PFP TI 德州仪器 | 当前型号 | 当前型号 |
TVP5150AM1PBSR 德州仪器 | 功能相似 | TVP5146PFP和TVP5150AM1PBSR的区别 |
TVP5150AM1IPBS 德州仪器 | 功能相似 | TVP5146PFP和TVP5150AM1IPBS的区别 |
TVP5150AM1IPBSR 德州仪器 | 功能相似 | TVP5146PFP和TVP5150AM1IPBSR的区别 |
