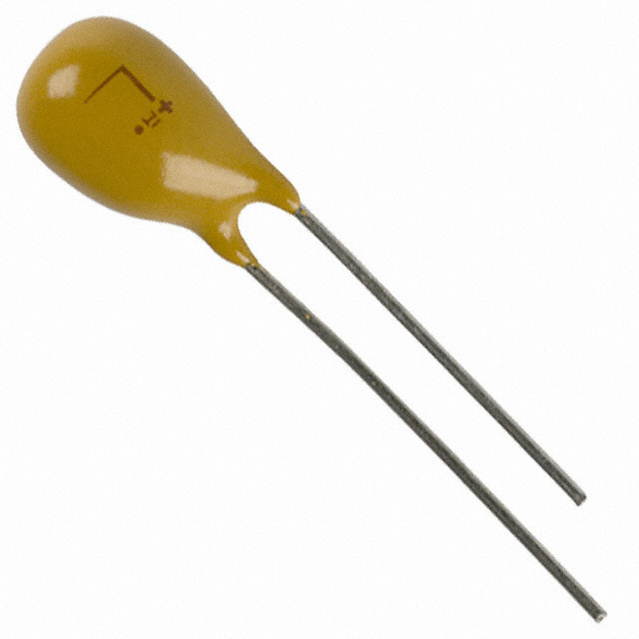

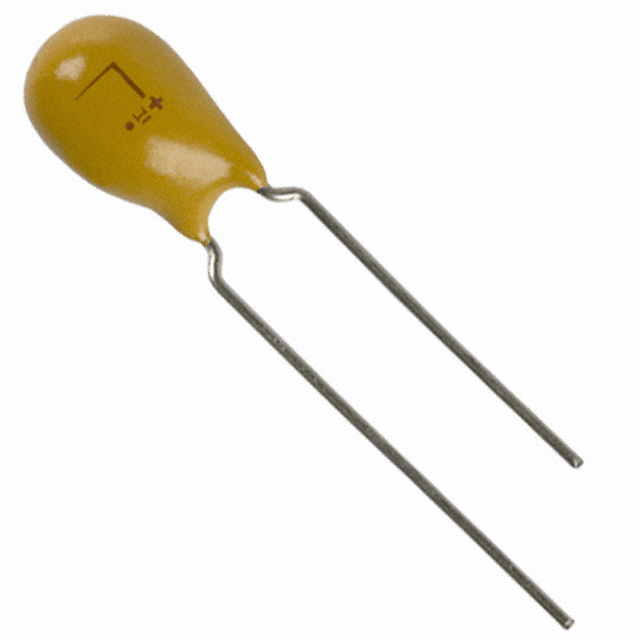

AVX TAP106K050SCS 钽电容, 10uF 10%容差 50V
This tantalum solid capacitor from provides a high capacitance per volume, as well as a lower footprint design. It can withstand a voltage of 50 VDC. Users like its straight wire form. Its leakage current is 4 μA. This solid capacitor has a maximum operating temperature of 125 °C. This part has a pitch of 2.5 mm. This product is 11.5Max mm tall with a diameter of 8Max mm. The TAP106K050SCS solid capacitor has a radial termination style. It has a tolerance of 10%. Its capacitance value is 10uF.
额定电压DC 50 V
电容 10 µF
等效串联电阻ESR 1.6 Ω
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±20 %
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 Through Hole
引脚间距 2.5 mm
长度 11.5 mm
高度 11.5 mm
直径 7.87 mm
封装 Through Hole
引脚间距 2.5 mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
寿命（小时） 1000h @85℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TAP106K050SCS AVX 艾维克斯 | 当前型号 | 当前型号 |
TAP106K035SCS 艾维克斯 | 类似代替 | TAP106K050SCS和TAP106K035SCS的区别 |
TAP106K016SCS 艾维克斯 | 功能相似 | TAP106K050SCS和TAP106K016SCS的区别 |
TAP106K010SCS 艾维克斯 | 功能相似 | TAP106K050SCS和TAP106K010SCS的区别 |
