24VDC 20A 无锁存

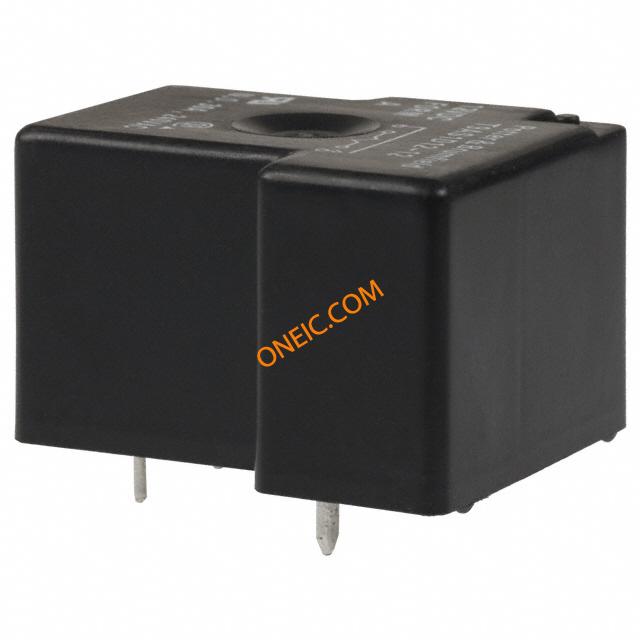

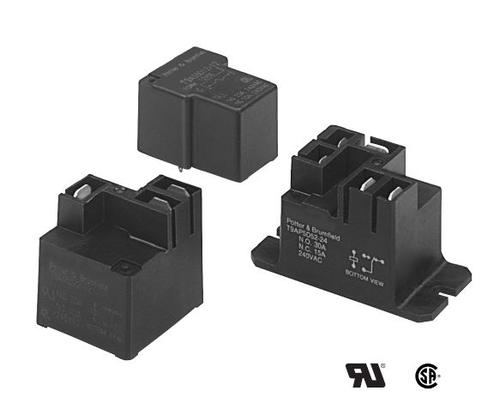

T9A Power Relay, option for load connections via QC terminals. Standard 30 Amps global footprint.
得捷:
RELAY GEN PURPOSE SPDT 20A 24V
立创商城:
24VDC 20A 无锁存
艾睿:
Power Relay 24VDC 20NO/10NCA SPDT 32.51mm 27.43mm 20.4mm THT
Chip1Stop:
Electromechanical Relay 24VDC 660Ohm 20NO/10NCA SPDT 32.51mm 27.43mm 20.4mm THT Industrial Relay
Verical:
Electromechanical Relay 24VDC 660Ohm 20NO/10NCA SPDT 32.51mm 27.43mm 20.4mm THT Industrial Relay
MASTER:
Power Relay 24VDC 20NO/10NCA SPDT 32.51mm 27.43mm 20.4mm THT
Online Components:
Power Relay 24VDC 20NO/10NCA SPDT 32.51mm 27.43mm 20.4mm THT
Electro Sonic:
Power Relay 24VDC 20NO/10NCA SPDT32.51mm 27.43mm 20.4mm THT
额定电压DC 28 V
额定电压AC 277 V
输入电压DC 24.0 V
触点额定电流 30.0 A
线圈电压 24 VDC
线圈电流 36 mA
线圈功率DC 900 mW
线圈电阻 660 Ω
线圈电压DC 24 V
线圈功率 900 mW
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 5
封装 -
长度 32.51 mm
宽度 27.43 mm
高度 20.4 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
