微功率电源电压监控器 Micropower Supply Voltage Supervisors
Worried about sensitive components in your circuit? The supply voltage supervisory voltage monitor IC from Texas Instruments can add an extra layer of protection from voltage spikes. This device has a maximum power dissipation of 525 mW. Its maximum power dissipation is 525 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a minimum operating supply voltage of 2 V and a maximum of 6 V. This voltage supervisor IC has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a typical reset threshold voltage of 2.63 V, with a minimum of 2.56 V and a maximum of 2.7 V.
电源电压DC 2.00V min
输出电流 10 mA
供电电流 0.016 mA
耗散功率 525 mW
静态电流 9.00 µA
阈值电压 2.63 V
复位电压Min 2.56 V
复位电压Max 2.7 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 525 mW
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8

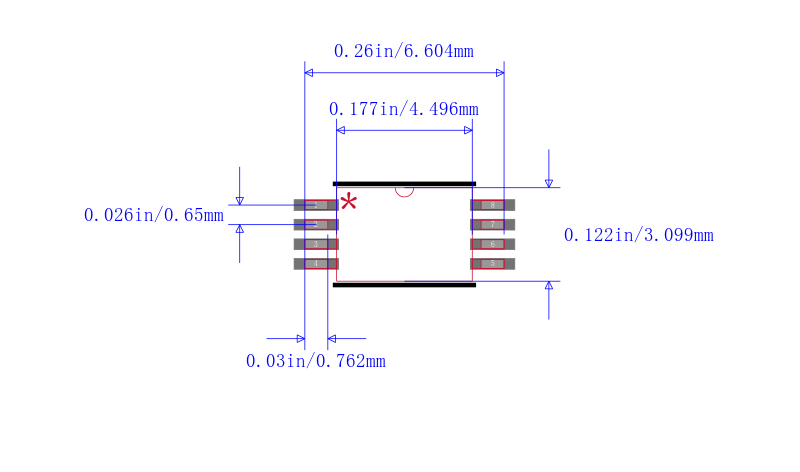

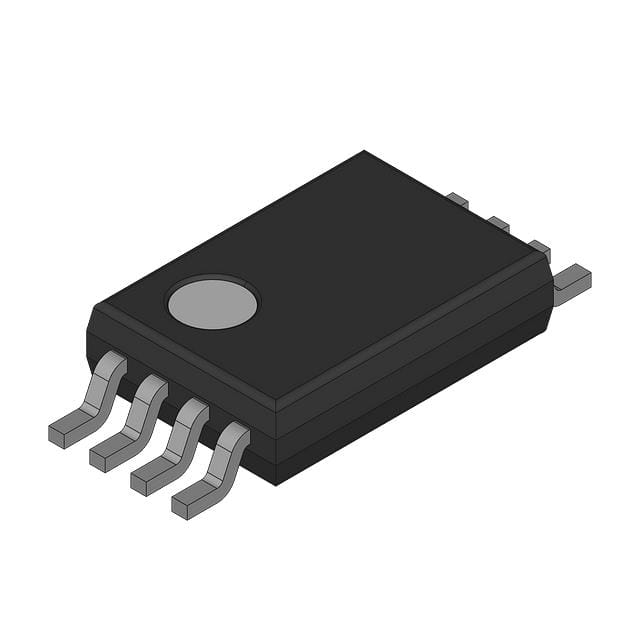

封装 TSSOP-8
长度 3 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TLC7703IPWR TI 德州仪器 | 当前型号 | 当前型号 |
TLC7703IPWG4 德州仪器 | 完全替代 | TLC7703IPWR和TLC7703IPWG4的区别 |
TLC7703IPW 德州仪器 | 类似代替 | TLC7703IPWR和TLC7703IPW的区别 |
TLC7703QPW 德州仪器 | 类似代替 | TLC7703IPWR和TLC7703QPW的区别 |
