TLC7705ID

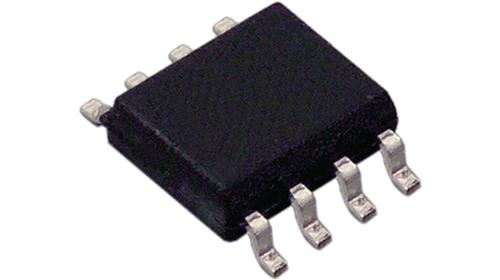

TEXAS INSTRUMENTS  TLC7705ID  监控器电路, 高电平有效, 低电平有效复位, 2V-6V输入, SOIC-8

MPU 监控和重置电路，Texas Instruments，3.0V 至 13.5V

Texas Instruments 的一系列微处理器电源电压监控和重置电路，具有固定阈值电压电平。

### 微处理器电源电压监控和复位电路

电源电压监测和监控电路，用于台式机、便携式计算机和笔记本电脑、测试和测量仪器、便携式电池供电设备和多输出电源。

电源电压探测器

电源电压监控器

电源监控器

微处理器监控

微处理器电压监控器

微控制器复位电路

欧时:
Supply voltage supervisorTLC7705ID 4.55V

立创商城:
TLC7705ID

德州仪器TI:
Voltage supervisor with programmable delay time

得捷:
TLC77 VOLTAGE SUPERVISOR WITH PR

e络盟:
电压监测器, 2V-6V电源, 高低有效复位, 2.1MS 延迟/4.55V 阈值, SOIC-8

艾睿:
Processor Supervisor 4.55V 1 Active Low 8-Pin SOIC Tube

Jameco:
Volt Supervisor Supply 4.55 Volt 8-Pin SOIC Tube

安富利:
Volt Supervisor Supply 5V 8-Pin SOIC Tube

Chip1Stop:
Volt Supervisor Supply 5V 8-Pin SOIC Tube

TME:
Supervisor Integrated Circuit; Active-High, Active-Low; SOIC8

Verical:
Processor Supervisor 4.55V 1 Active Low 8-Pin SOIC Tube

Newark:
The TLC7705ID is a Single Power Supply Voltage Supervisor SVS with programmable time delay and push-pull outputs. This SVS provides reset control primarily in microcomputer and microprocessor systems. During power-on, RESET is asserted when VDD reaches 1V. After minimum VDD ≥2V is established, the circuit monitors SENSE voltage and keeps the reset outputs active as long as SENSE voltage VI SENSE remains below the threshold voltage. An internal timer delays return of the output to the inactive state to ensure proper system reset. When SENSE voltage drops below the threshold voltage, the outputs become active and stay in that state until SENSE voltage returns above threshold voltage and the delay time, td has expired. When CONTROL is tied to GND, RESET will act as active high. The voltage monitor contains additional logic intended for control of static memories with battery backup during power failure.

Win Source:
IC 4.55V SUPPLY MONITOR 8-SOIC

DeviceMart:
IC 4.55V SUPPLY MONITOR 8-SOIC
