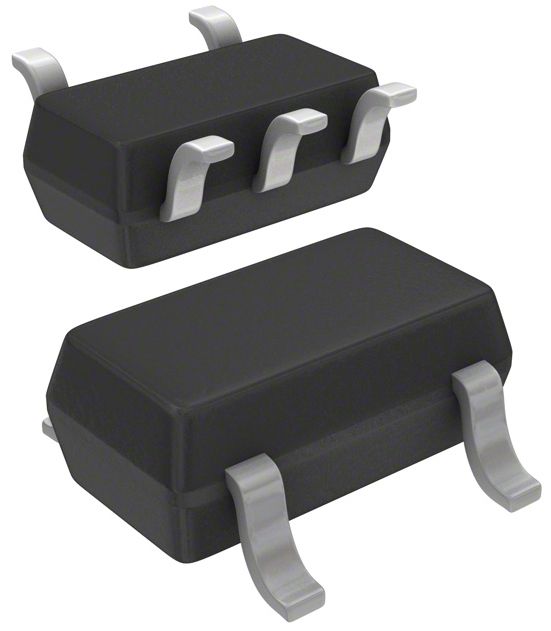

TPS2051BDBVR

TEXAS INSTRUMENTS  TPS2051BDBVR.  电源分配开关, 限流, 高压侧, 高电平有效, 1路输出, 5.5V, 1A, SOT-23-5

The is a Single Current Limited Power Distribution Switch intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mR N-channel MOSFET power switches for power-distribution systems that require multiple power switches. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components. When the output load exceeds the current-limit threshold or a short is present, the device limits the output current to a safe level by switching into a constant-current mode, pulling the over-current logic output low. When continuous heavy overloads and short-circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage.

.

70mR High-side MOSFET

.

500mA Continuous current

.

Thermal and short-circuit protection

.

Accurate current limit 0.75A minimum, 1.25A maximum

.

2.7 to 5.5V Operating range

.

0.6ms Typical rise time

.

Under-voltage lockout

.

Deglitched fault report OC

.

No OC glitch during power up

.

1µA Maximum standby supply current

.

Green product and no Sb/Br

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
