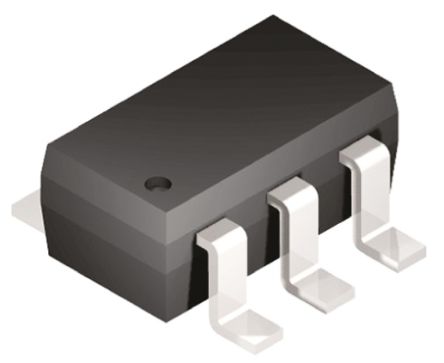

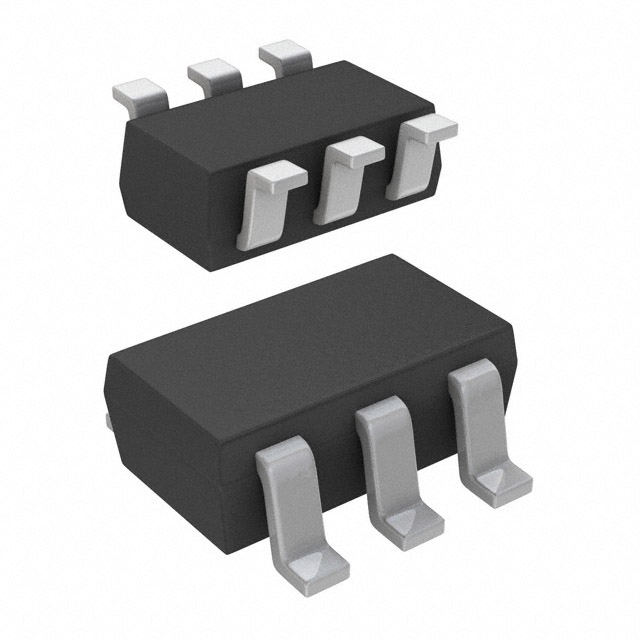

TEXAS INSTRUMENTS TPS2552DBVT-1 电源分配开关, 限流, 高压侧, 低电平有效, 1路输出, 6.5V, 1.5A, SOT-23-6
精密可调限制电流开关,Texas Instrument
得捷:
IC PWR SWITCH N-CHAN 1:1 SOT23-6
立创商城:
TPS2552DBVT-1
德州仪器TI:
0.075-1.7A adj. ILIMIT, 2.5-6.5V, 85mΩ USB power switch, active-low, latch-off, reverse blocking
欧时:
Texas Instruments TPS2552DBVT-1 配电开关, 高侧, 135mΩ接通电阻, 2.5 V min., 6引脚 SOT-23封装
e络盟:
电源分配开关, 限流, 高压侧, 低电平有效, 1路输出, 6.5V, 1.5A, SOT-23-6
艾睿:
Use this usb power distribution switch TPS2552DBVT-1 USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. Using the part will provide the power your application needs by requiring a voltage only of 2.5 V and not exceeding a voltage of 6.5 V. Its current limit is 1.2Max A. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This USB powered network switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
USB Power SW DIST Single 6.5V 1.2A 6-Pin SOT-23 T/R
Chip1Stop:
USB Power SW DIST Single 6.5V 1.2A 6-Pin SOT-23 T/R
TME:
IC: analog switch; SPST; Channels:1; SOT23; 2.5÷6.5VDC
Verical:
USB Power SW DIST Single 6.5V 1.2A 6-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS TPS2552DBVT-1 POWER DISTRIBUTION SW, ADJ, SOT23-6
DeviceMart:
IC PWR DIST SWITCH ADJ SOT23-6
Win Source:
IC PWR DIST SWITCH ADJ SOT23-6
输出接口数 1
输入电压DC 6.50 V
输出电流 1.5 A
通道数 1
针脚数 6
耗散功率 625 mW
上升时间 1100 µs
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电流Max 1.5 A
输出电流Min 0 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 625 mW
电源电压 2.5.6.5 VDC
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
长度 3.05 mm
宽度 1.75 mm
高度 1.3 mm
封装 SOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2552DBVT-1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS2552DBVR 德州仪器 | 完全替代 | TPS2552DBVT-1和TPS2552DBVR的区别 |
TPS2552DBVR-1 德州仪器 | 完全替代 | TPS2552DBVT-1和TPS2552DBVR-1的区别 |
TPS2550DBVT 德州仪器 | 类似代替 | TPS2552DBVT-1和TPS2550DBVT的区别 |
