限流配电开关 CURRENT-LIMITED, POWER-DISTRIBUTION SWITCHES
Use this high side switch and usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. With a small input voltage of 2.7 V and a max of 5.5 V, this will supply sufficient power to your circuit. Its current limit is 0.75 to 1.25 A. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输入电压DC 5.50 V
输出电流 500 mA
耗散功率 1712.3 mW
上升时间 600 µs
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 500 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1712.3 mW
电源电压Max 5.5 V
电源电压Min 2.7 V
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8

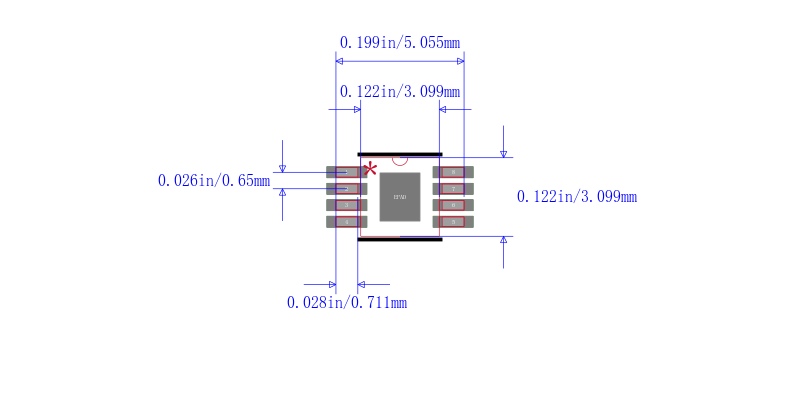

封装 PowerPad-MSOP-8
封装 PowerPad-MSOP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS2041BDGNR TI 德州仪器 | 当前型号 | 当前型号 |
TPS2041BDGNG4 德州仪器 | 完全替代 | TPS2041BDGNR和TPS2041BDGNG4的区别 |
TPS2041BDGNRG4 德州仪器 | 完全替代 | TPS2041BDGNR和TPS2041BDGNRG4的区别 |
TPS2041BD 德州仪器 | 类似代替 | TPS2041BDGNR和TPS2041BD的区别 |
