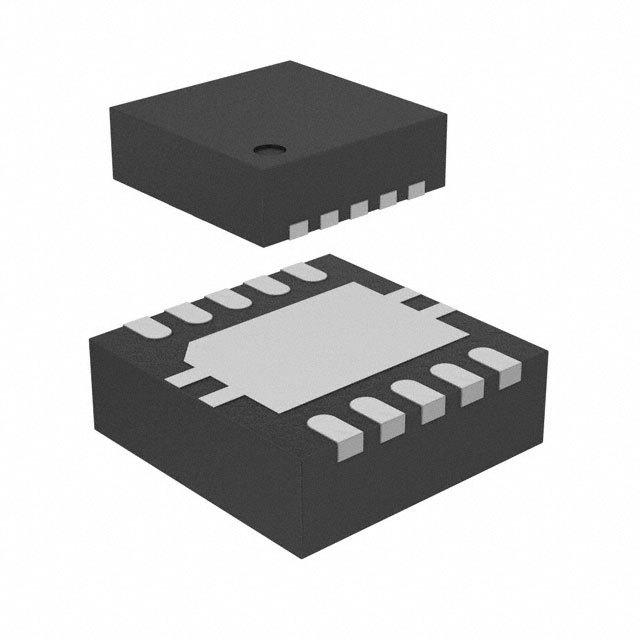

与升压转换器集成USB电源开关 INTEGRATED USB POWER SWITCH WITH BOOST CONVERTER
电源开关/驱动器 1:2 N/P 通道 1.4A 10-VSON(3x3)
得捷:
IC PWR SWITCH N/P-CH 1:2 10VSON
立创商城:
TPS2500DRCR
德州仪器TI:
0.13-1.4A adjustable ILIMIT, 1.8-5.25V, 80mΩ USB power switch + boost converter in Eco-mode
贸泽:
Power Switch ICs - Power Distribution Integr USB Pwr Sw w/ Boost Converter
艾睿:
Use this high side switch TPS2500DRCR USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. Using the part will provide the power your application needs by requiring a voltage only of 1.8 V and not exceeding a voltage of 5.25 V. Its current limit is 0.13 to 1.4 A. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This USB powered network switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
USB Power SW Lo Side Single 5.25V 0.13A to 1.4A 10-Pin VSON EP T/R
Chip1Stop:
USB Power SW Hi Side Single 5.25V 0.13A to 1.4A 10-Pin VSON EP T/R
Verical:
Hi Side Single 5.25V 0.13A to 1.4A 10-Pin VSON EP T/R
Win Source:
IC USB PWR SW W/BOOST CONV 10SON
DeviceMart:
IC USB PWR SW W/BOOST CONV 10SON
输出接口数 2
输出电流 1.15 A
耗散功率 2403 mW
输入电压Max 5.25 V
输入电压Min 1.8 V
输出电流Max 1.4 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2403 mW
电源电压Max 5.25 V
电源电压Min 1.8 V
输入电压 1.8V ~ 5.25V
安装方式 Surface Mount
引脚数 10
封装 VSON-10
封装 VSON-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2500DRCR TI 德州仪器 | 当前型号 | 当前型号 |
TPS2500DRCT 德州仪器 | 类似代替 | TPS2500DRCR和TPS2500DRCT的区别 |
