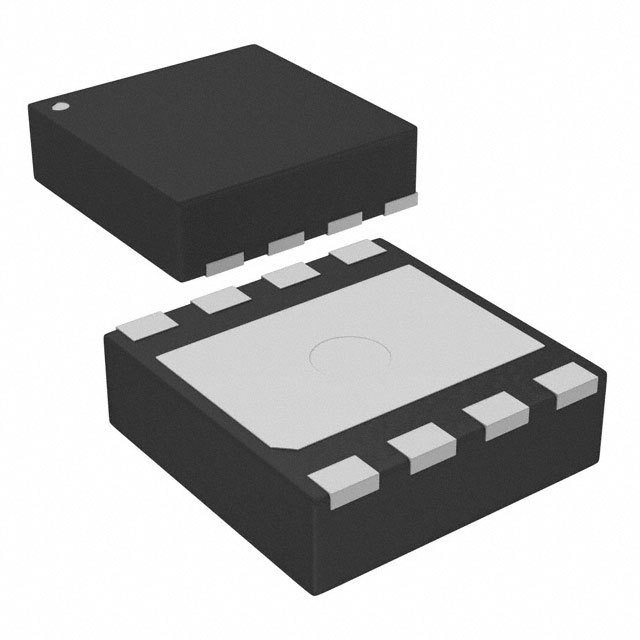

TEXAS INSTRUMENTS TPS2062CDRBT-2 电源分配开关, 限流, 高压侧, 低电平有效, 2路输出, 5.5V, 1.61A, SON-8
电源开关/驱动器 1:2 N 通道 1A 8-SON(3x3)
立创商城:
TPS2062CDRBT-2
德州仪器TI:
2-ch, 1A loading, 4.5-5.5V, 70mΩ USB power switch, active-low, reverse blocking
得捷:
IC PWR SWITCH N-CHAN 1:2 8SON
e络盟:
电源分配开关, 限流, 高压侧, 低电平有效, 2路输出, 5.5V, 1.61A, SON-8
艾睿:
Use this usb power distribution switch TPS2062CDRBT-2 USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 4.5 V that does not exceed 5.5 V. Its current limit is 1.61 A. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
安富利:
USB Power SW DIST Dual 5.5V 1.61A 8-Pin VSON EP T/R
Chip1Stop:
USB Power SW DIST Dual 5.5V 1.61A 8-Pin VSON EP T/R
Verical:
USB Power SW DIST Dual 5.5V 1.61A 8-Pin VSON EP T/R
Newark:
# TEXAS INSTRUMENTS TPS2062CDRBT-2 Power Distribution Switch, Current Limited, High Side, Active Low, 2 Outputs, 5.5V, 1.61A, SON-8
DeviceMart:
IC PWR DIST SW CURR-LMT DL 8SON
Win Source:
IC PWR DIST SW CURR-LMT DL 8SON
输出接口数 2
输入电压DC 5.50 V
针脚数 8
上升时间 820 µs
输入电压Max 5.5 V
输入电压Min 4.5 V
输出电流Max 1 A
下降时间 470 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 4.5 V
输入电压 5.5 V
安装方式 Surface Mount
引脚数 8
封装 VSON EP-8
高度 0.95 mm
封装 VSON EP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2062CDRBT-2 TI 德州仪器 | 当前型号 | 当前型号 |
TPS2062CDRBR-2 德州仪器 | 类似代替 | TPS2062CDRBT-2和TPS2062CDRBR-2的区别 |
