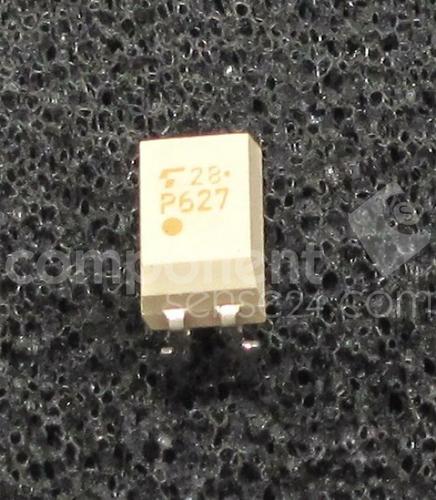

TLP627

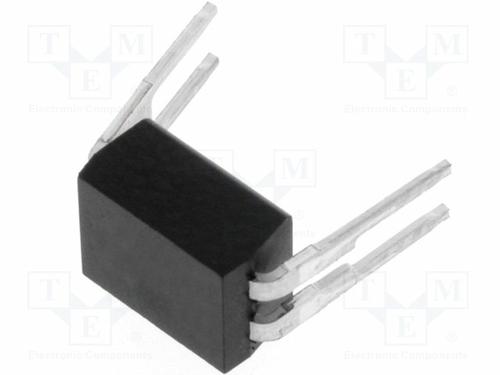

Optocoupler DC-IN 1CH Darlington DC-OUT 4Pin PDIP

PROGRAMMABLE CONTROLLERS DC-OUTPUT MODULE TELECOMMUNICATION

The TOSHIBA ,-2 and -4 consists of a gallium arsenide infrared emitting diode optically coupled to a darlington connected phototransistor which has an integral base-emitter resistor to optimize switching speed and elevated temperature characteristics. The TLP627-2 offers two isolated channels in a eight lead plastic DIP, while the TLP627-4 provide four isolated channels per package.

Collector-Emitter Voltage        : 300VMin

Current Transfer Ratio            : 1000%Min

Isolation Voltage                   : 5000VrmsMin

UL Recognized                      : UL1577,File No.E67349
