0.9欧姆SPST模拟开关 0.9 OHM SPST ANALOG SWITCH
The TS5A3167 is a bidirectional, single-channel, single-pole double-throw SPDT analog switch that is designed to operate from 1.65 V to 5.5 V. The TS5A3167 device offers a low ON-state resistance. The device has excellent total harmonic distortion THD performance and consumes very low power. These features make this device suitable for portable audio applications.
立创商城:
TS5A3167YZPR
德州仪器TI:
0.9-Ω on-state resistance, 5-V, 1:1 SPST, 1-channel analog switch active low
得捷:
IC SWITCH SPST 5DSBGA
贸泽:
模拟开关 IC 1-Ohm SPST 5-V/3.3-V Sng-Ch Analog Switch
艾睿:
Analog Switch Single SPST 5-Pin DSBGA T/R
安富利:
Analog Switch Single SPST 5-Pin DSBGA T/R
Chip1Stop:
Analog Switch Single SPST 5-Pin DSBGA T/R
Verical:
Analog Switch Single SPST 5-Pin DSBGA T/R
Newark:
# TEXAS INSTRUMENTS TS5A3167YZPR Analog Switch, Single Channel, SPST, 1 Channels, 0.9 ohm, 1.65V to 5.5V, DSBGA, 5 Pins
电源电压DC 1.65V ~ 5.50V
输出接口数 1
触点类型 SPST
供电电流 10 nA
电路数 1
通道数 1
位数 1
电压波节 1.80 V, 2.50 V, 3.00 V, 3.30 V, 5.00 V
带宽 200 MHz
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 150 MHz
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5

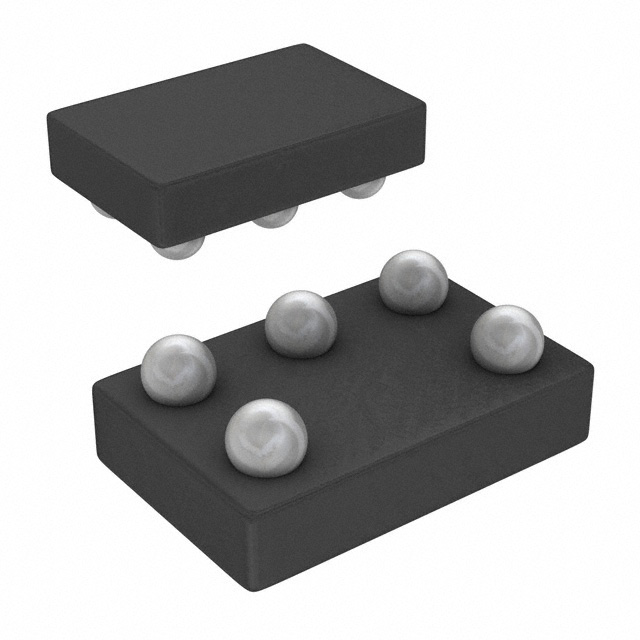

封装 DSBGA-5
长度 1.4 mm
宽度 0.9 mm
高度 0.3 mm
封装 DSBGA-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
