TPD4S009DBVR

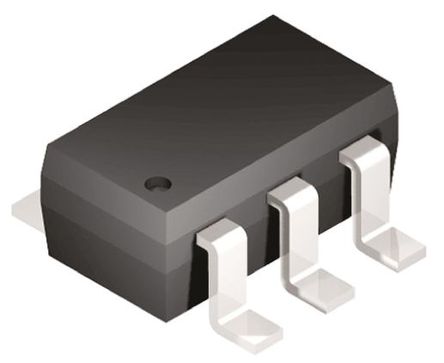

TEXAS INSTRUMENTS  TPD4S009DBVR  静电保护装置, SOT-23, 6 引脚, 25 W

The is a 4-channel ESD Solution TVS Diode for high-speed differential interface. It is rated to dissipate contact ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard level 4, with ±8kV contact discharge ESD protection. The low capacitance 0.8pF of the device coupled with the excellent matching between differential signal pairs enables this device to provide transient voltage suppression circuit protection for high-speed differential data rates 3dB bandwidth >4GHz.

.

IEC 61000-4-2 level 4 ESD protection ±8kV contact discharge

.

IEC 61000-4-5 Surge protection 2.5A 8/20µs

.

0.8pF I/O capacitance

.

10nA Low leakage current

.

Ultra-low matching capacitance between differential signal pairs

.

Easy straight through routing and space-saving

.

-40 to 85°C Operating temperature range
