TS5A3159ADBVR

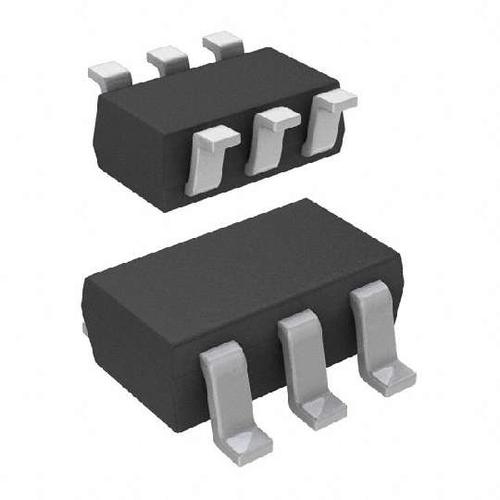

TEXAS INSTRUMENTS  TS5A3159ADBVR.  芯片, 模拟开关, SPDT, 1通道, SOT-23-6

The is a 1R SPDT Analogue Switch designed to operate from 1.65 to 5.5V. The device 1-channel 2:1 multiplexer/demultiplexer offers low on-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The 1.65 to 5.5V operation allows compatibility with more logic levels and the bidirectional I/Os can pass analogue signals from 0V to V+ with low distortion. The low ON-state resistance, ON-state resistance matching and charge injection make this switch an excellent choice for analogue signals that require minimal distortion. The device has an excellent total harmonic distortion THD performance and consumes very low power. These features make this device suitable for portable audio applications.

.

Isolation in powered-down mode, V+ = 0

.

Low ON-state resistance 1R

.

Control inputs are 5.5V tolerant

.

Low charge injection

.

Excellent ON-state resistance matching

.

Low total harmonic distortion THD

.

Single-supply operation

.

Latch-up performance exceeds 100mA per JESD 78, class II

.

Green product and no Sb/Br

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
