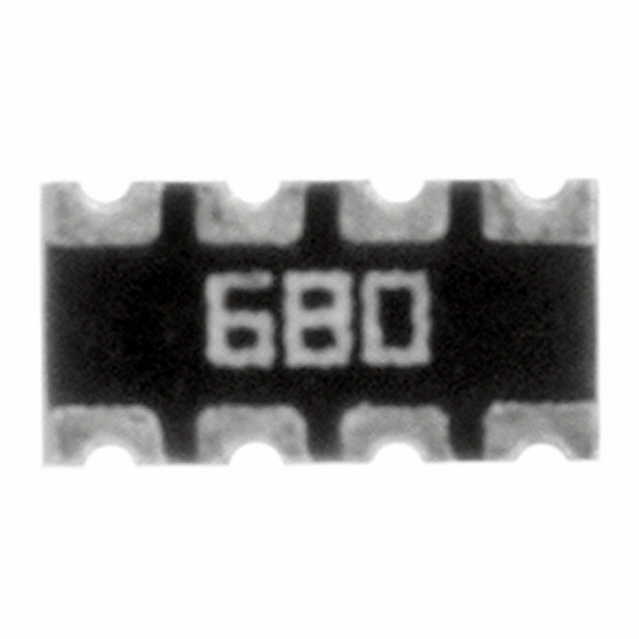

YAGEO PHYCOMP TC164-JR-0768RL 电阻阵列, ARC241 1206 68R
器网络与阵列
得捷:
RES ARRAY 4 RES 68 OHM 1206
立创商城:
TC164-JR-0768RL
e络盟:
固定阵列电阻, 68 ohm, TC164 Series, 4 元件, 隔离, 1206 [3216公制], 8 引脚
艾睿:
Looking to save space and power in your circuit design? The TC164-JR-0768RL resistor array from Yageo gives you a solution by combining multiple resistors into a single chip. This product&s;s 4 resistors have a value of 68 Ohm. This dependable part has a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C. This product&s;s terminal pitch is 0.8 mm. This device utilizes thick film technology. The TC164-JR-0768RL part has a concave termination style. It has a tolerance of 5%.
Chip1Stop:
Res Thick Film Array 68 Ohm 5% 200ppm/ C ISOL Molded 8-Pin 12064 X 0603 Concave SMD Paper T/R
Newark:
# YAGEO PHYCOMP TC164-JR-0768RL RESISTOR ARRAY, ARC241 1206 68R
儒卓力:
**CN1206R4 68R 5% 0,063W CONCAVE **
触点数 8
额定电压DC 50.0 V
额定电压AC 50.0 V
容差 ±5 %
额定功率 0.063 W
电路数 4
针脚数 8
产品系列 TC
电阻 68 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 8
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 电源管理, 工业, Consumer Electronics, 消费电子产品, Power Management, Portable Devices, DDRAM,SDRAM, Industrial, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC164-JR-0768RL Yageo 国巨 | 当前型号 | 当前型号 |
CRB3A4E680JT 艾维克斯 | 完全替代 | TC164-JR-0768RL和CRB3A4E680JT的区别 |
CRC3A4E680JT 艾维克斯 | 完全替代 | TC164-JR-0768RL和CRC3A4E680JT的区别 |
