PANASONIC ELECTRIC WORKS TQ2SA-5V 信号继电器, TQ-SMD系列, DPDT, 5 VDC, 2 A, SMD, 非闭锁
继电器与电磁阀
欧时:
Panasonic 双刀双掷 表面贴装 高频继电器 TQ2SA-5V, 5V dc
立创商城:
TQ2SA-5V
艾睿:
Electromechanical Relay 5VDC 178Ohm 2A DPDT 14x11.5x5.6mm SMD General Purpose Relay
Allied Electronics:
Relay; E-Mech; DPDT-NO/NC; Cur-Rtg 2A; Ctrl-V 5DC; Vol-Rtg 125/220AC/DC; SMT
Jameco:
Electromechanical Relay 5VDC 178 Ohm 2A Double Pole Double Throw DPDT 14x11.5x5.6mm Surface Mount General Purpose Relay
Chip1Stop:
Electromechanical Relay DPDT 2A 5VDC 178Ohm Surface Mount
TME:
Relay: electromagnetic; DPDT; Ucoil:5VDC; 0.5A/125VAC; 1A/30VDC
Verical:
Electromechanical Relay 5VDC 178Ohm 2A DPDT 14x11.5x5.6mm SMD General Purpose Relay
Newark:
# PANASONIC ELECTRIC WORKS TQ2SA-5V Signal Relay, DPDT, 5 VDC, 2 A, TQ-SMD Series, SMD, Non Latching
MASTER:
Signal Relay 5VDC 2A DPDT14x11.5x5.6mm SMD
Electro Sonic:
Signal Relay 5VDC 2A DPDT14x11.5x5.6mm SMD
Win Source:
Telecom Relay DPDT 2 Form C Surface Mount
触点电镀 Gold
额定电压DC 220 V
额定电压AC 125 V
额定电流 2 A
绝缘电阻 1000 MΩ
额定功率 140 mW
触点类型 DPDT
功耗 140 mW
触点额定电流 2 A
线圈电压 5 VDC
线圈电流 28.1 mA
线圈功率DC 200 mW
线圈电阻 178 Ω
载流 2.00 A
额定电流Max 2 A
线圈电压DC 5 V
线圈功率 140 mW
额定功率Max 60W, 62.5VA
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 220 VDC
额定电压DC Max 220 V
额定电压AC Max 125 V
接触电阻Max 75 mΩ

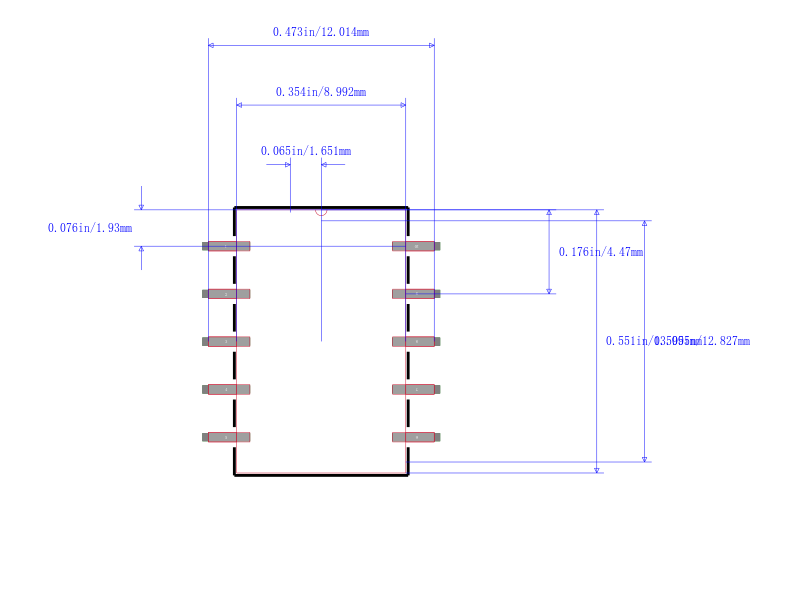

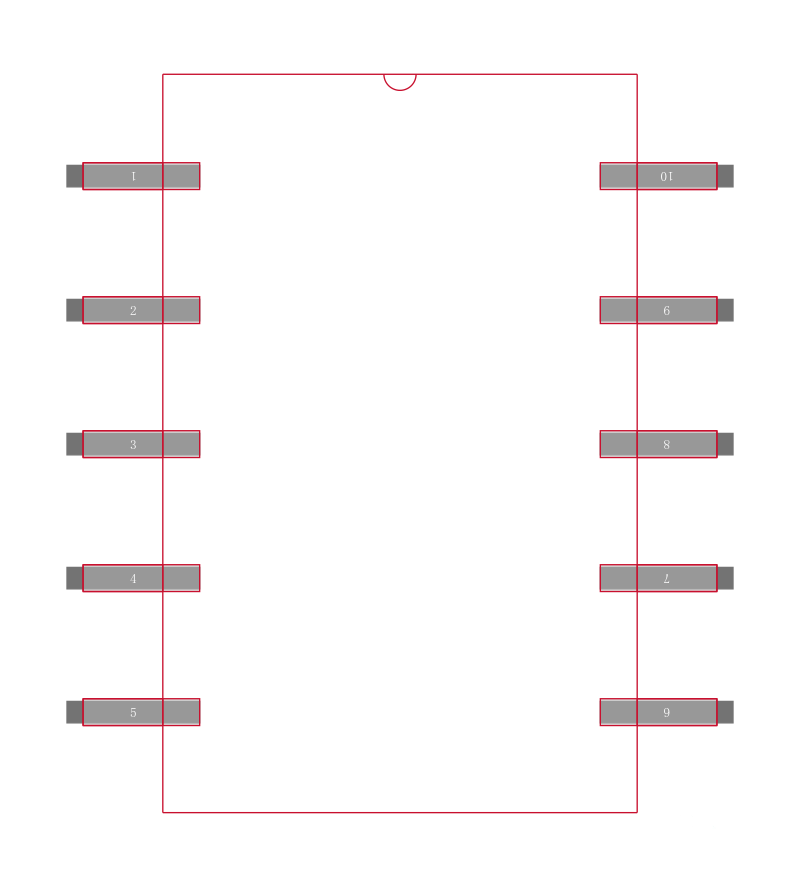

安装方式 Surface Mount
引脚数 10
封装 DIP
长度 14 mm
宽度 5.6 mm
高度 5.6 mm
封装 DIP
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, 工业, Industrial, Automation & Process Control, 自动化与过程控制, Consumer Electronics, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536490050
