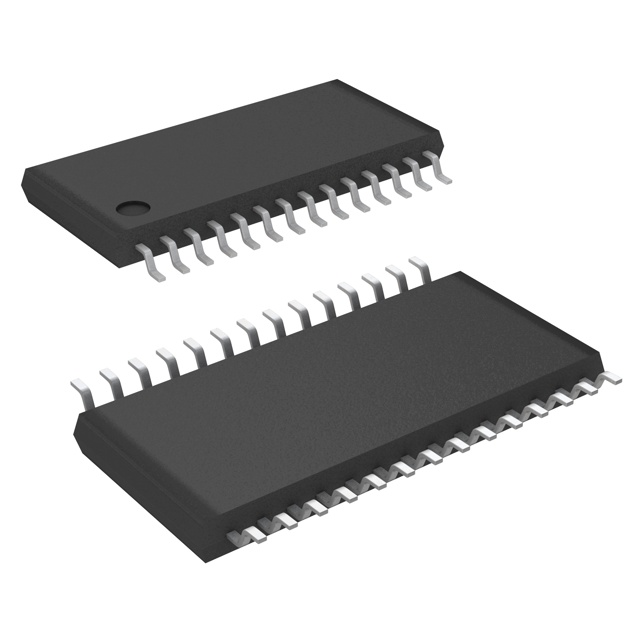

TDA5220

ASK / FSK单一转换接收器 ASK/FSK Single Conversion Receiver

Description:

The IC is a very low power consumption single chip FSK/ASK Superheterodyne Receiver SHR for the frequency bands 810 to 870 MHz and 400 to 440 MHz. The IC< offers a high level of integration and needs only a few external components. The device< contains a low noise amplifier LNA, a double balanced mixer, a fully integrated VCO, a PLL synthesiser, a crystal oscillator, a limiter with RSSI generator, a PLL FSK demodulator, a data filter, an advanced data comparator slicer with selection between two threshold modes and a peak detector. Additionally there is a power down feature to save current and extend battery life, and two selectable alternatives of generating the data slicer threshold.

Summary of Features:

.

 Low supply current Is = 5.7/5.9 mA typ. in FSK mode, Is = 5.0/5.2 mA typ. in ASK mode for 434/868 MHz

.

 Supply voltage range 5V ±10%

.

 Power down mode with very low supply current 50nA typ.

.

 FSK and ASK demodulation capability

.

Fully integrated VCO and PLL Synthesiser

.

ASK sensitivity better than -106 dBm over specified temperature range - 40 to +105°C

.

 FSK sensitivity better than -100 dBm over specified temperature range - 40 to +105°C

.

 Selectable frequency ranges 810-870 MHz and 400-440 MHz

.

Limiter with RSSI generation, operating at 10.7MHz

.

2nd order low pass data filter with external capacitors

.

 Data slicer with selection between two threshold modes
