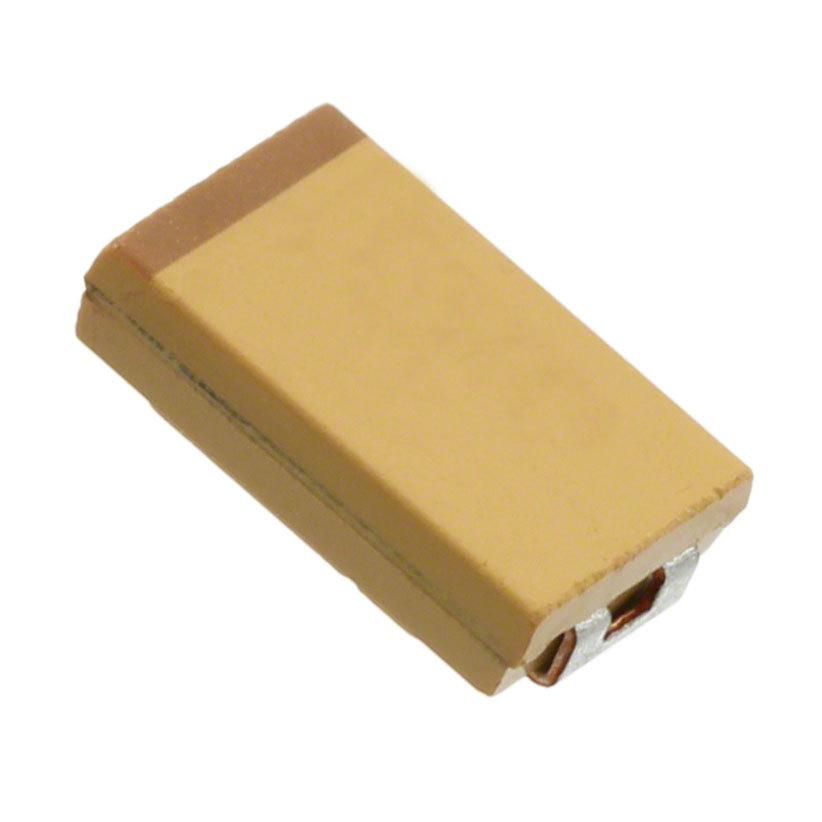

TCJY107M010R0025

表面贴装钽电容, 100 µF, 10 V, 2917 [7343 公制], TCJ Series, ± 20%, -55 °C

100µF Molded Tantalum Polymer Capacitor 10V 2917 7343 Metric 25mOhm @ 100kHz

得捷:
CAP TANT POLY 100UF 10V 2917

贸泽:
Tantalum Capacitors - Polymer SMD 10volts 100uF 10% ESR=25mOhms

e络盟:
表面贴装钽电容, 100 µF, 10 V, 2917 [7343 公制], TCJ Series, ± 20%, -55 °C

艾睿:
Cap Tant Polymer 100uF 10VDC Y CASE 20% 7.3 X 4.3 X 2mm SMD 7343-20 0.025 Ohm 105°C T/R

安富利:
AVX Corporation’s TCJ series is a surface mount polymer tantalum capacitor. Conductive Polymer solid electrolytic chip capacitors TCJ series is a general purpose SMT chip polymer series, offering low ESR, wide range of Capacitance and Voltage in standard SMD capacitor design with J-lead terminations. Maximum operating temperature up to 125 degrees Celsius. Total 17 case sizes from very small 0805 up to large 7341 footprints, and total component maximum height from 1.00mm up to 4.3mm. The voltage range offers the industry highest rated Voltages 63V up to 125V. The conductive polymer electrode exhibits a benign failure mode under recommended use conditions. Lead-free, halogen free m.compound, RoHS compliant components.
