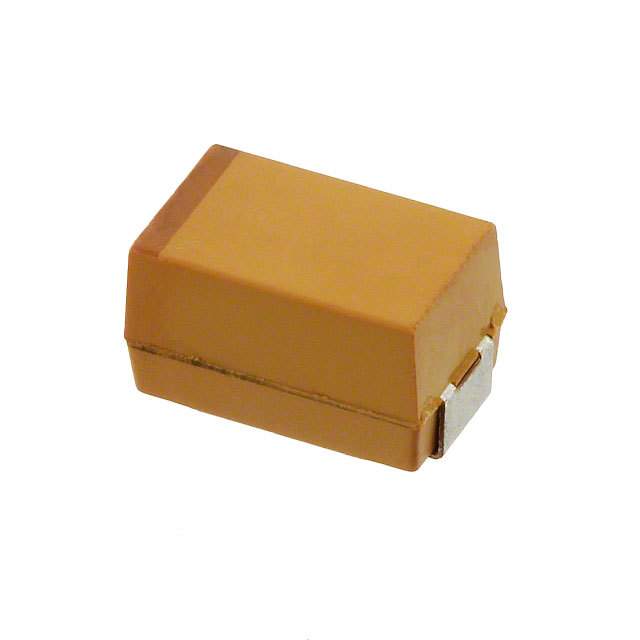

TCJE685M063R0150

7343 6.8uF ±20% 63V

6.8 µF 模制 聚合物钽器 63 V 2917（7343 公制） 150 毫欧 @ 100kHz

得捷:
CAP TANT POLY 6.8UF 63V 2917

贸泽:
Tantalum Capacitors - Polymer SMD 63volts 6.8 uF 0.2 ESR = 150mOhms

艾睿:
Cap Tant Polymer 6.8uF 63VDC E CASE 20% 7.3 X 4.3 X 4.1mm SMD 7343-43 0.15 Ohm 105°C T/R

安富利:
AVX Corporation’s TCJ series is a surface mount polymer tantalum capacitor. Conductive Polymer solid electrolytic chip capacitors TCJ series is a general purpose SMT chip polymer series, offering low ESR, wide range of Capacitance and Voltage in standard SMD capacitor design with J-lead terminations. Maximum operating temperature up to 125 degrees Celsius. Total 17 case sizes from very small 0805 up to large 7341 footprints, and total component maximum height from 1.00mm up to 4.3mm. The voltage range offers the industry highest rated Voltages 63V up to 125V. The conductive polymer electrode exhibits a benign failure mode under recommended use conditions. Lead-free, halogen free m.compound, RoHS compliant components.
