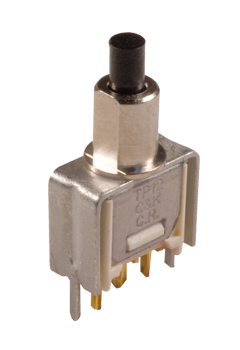

TP 系列 1 A 120 Vac 28 Vdc 0.4 VA 按键开关
Tiny Pushbutton Switches
立创商城:
TP11SH9AGE
艾睿:
Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole Bulk
Verical:
Switch Push Button OFF Mom SPST Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact Thru-Hole PC Pins Bulk
Newark:
# C & K COMPONENTS TP11SH9AGE Pushbutton
MASTER:
Tiny Pushbutton Switches
Online Components:
Tiny Pushbutton Switches
Electro Sonic:
Tiny Pushbutton Switches
额定电压DC 28 V
额定电压AC 120 V
额定电流 1A AC, 1A DC
排数 1
额定电流Max 1A @120VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 6.1 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
