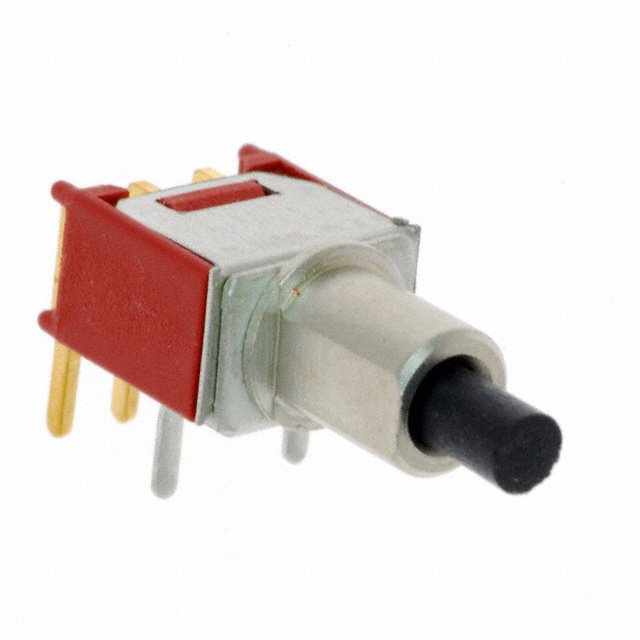

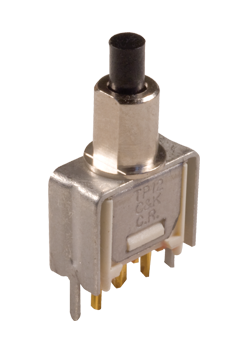

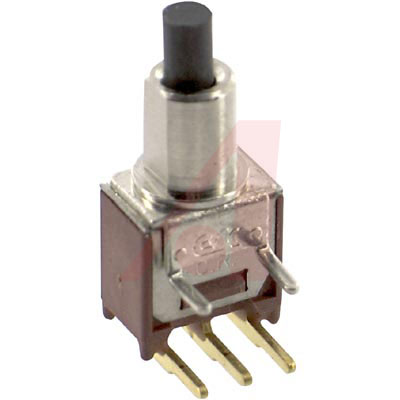

TP 系列 微型 单刀双掷 开-瞬时 直角 通孔 按键开关
按钮 SPDT 标准 通孔,直角
立创商城:
TP12SH9ABE
得捷:
SWITCH PUSH SPDT 0.4VA 20V
艾睿:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Bulk
Allied Electronics:
Switch, Pushbutton, TINY, PC Terminal/RIGHT ANGLE MOUNTING, SPDT, ON-MOM.
Chip1Stop:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole
Verical:
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Thru-Hole PC Pins Bulk
Newark:
# C & K COMPONENTS TP12SH9ABE Pushbutton
MASTER:
Tiny Pushbutton Switches
Online Components:
Tiny Pushbutton Switches
Electro Sonic:
Tiny Pushbutton Switches
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
额定电流 0.02 A
绝缘电阻 1 GΩ
排数 1
触点类型 SPDT
针脚数 2
接触电阻 ≤20 MΩ
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 20 VDC
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 Through Hole
长度 8.13 mm
高度 6.1 mm
封装 Through Hole
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 30000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
