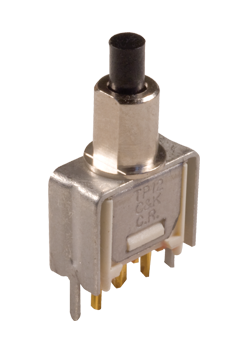

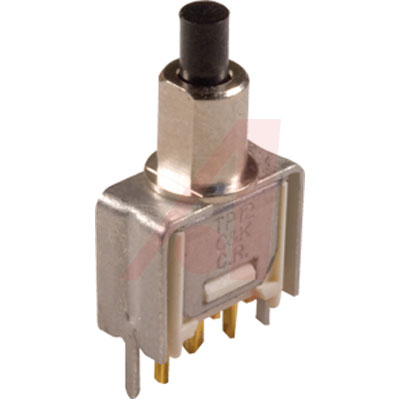

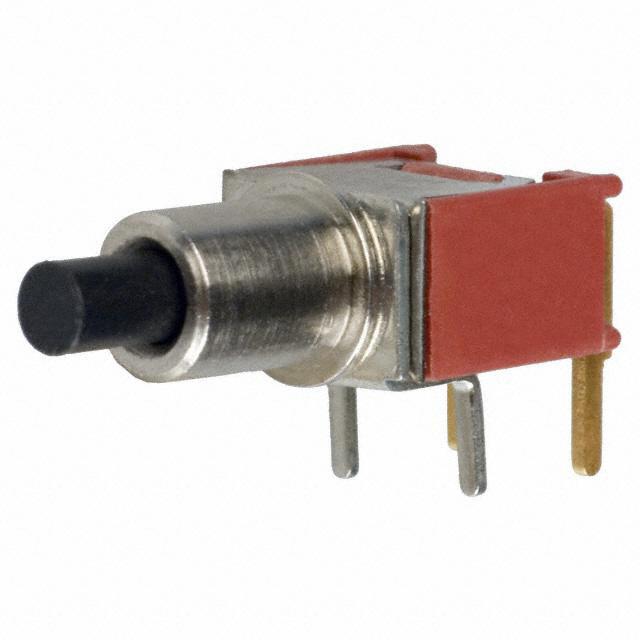

C & K COMPONENTS TP11SH8ABE 按钮开关, SPST, 关-开, 20 V, 20 V, 1 A, 焊接
按钮 SPST-NO 标准 通孔,直角
得捷:
SWITCH PUSH SPST-NO 0.4VA 20V
立创商城:
TP11SH8ABE
e络盟:
# C & K COMPONENTS TP11SH8ABE 按钮开关, SPST, 关-开, 20 V, 20 V, 1 A, 焊接
艾睿:
Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Bulk
Allied Electronics:
Switch, Pushbtn; SPST; Off On; 0.4VA; Right Angle PCB mnt
Chip1Stop:
Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Bulk
Verical:
Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact Thru-Hole PC Pins Bulk
Newark:
# C & K COMPONENTS TP11SH8ABE Pushbutton
MASTER:
Tiny Pushbutton Switches
Online Components:
Tiny Pushbutton Switches
Electro Sonic:
Tiny Pushbutton Switches
触点电镀 Gold
额定电压DC 20 V
额定电压AC 20 V
额定电流 0.02 A
绝缘电阻 1 GΩ
排数 1
触点类型 SPST
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 20 VDC
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <20 mΩ
安装方式 Through Hole
封装 -
长度 8.13 mm
高度 6.1 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8536509031
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TP11SH8ABE C&K Components | 当前型号 | 当前型号 |
EP11SD1APE C&K Components | 完全替代 | TP11SH8ABE和EP11SD1APE的区别 |
EP11S2D1AVBE C&K Components | 完全替代 | TP11SH8ABE和EP11S2D1AVBE的区别 |
EP11FPD1AVBE C&K Components | 类似代替 | TP11SH8ABE和EP11FPD1AVBE的区别 |
