T521D475M075ATE075

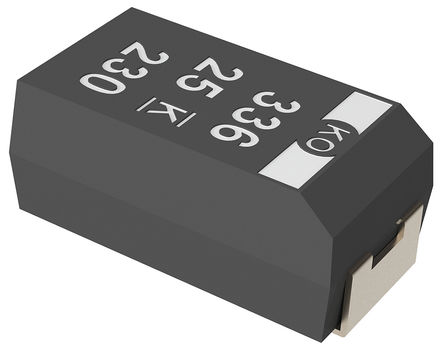

KEMET  T521D475M075ATE075  Surface Mount Tantalum Capacitor, KO-CAP T521 Series, 4.7 µF, 2917 [7343 Metric], 0.075 ohm, 75 V 新

Kemet T521 系列

KEMET 的 T521 系列是电解器，具有导电聚合物电极，可提供低 ESR。 这些电容器具有冗长工作寿命且高度可靠，高频率下具有改进的电容保持能力。 T521 有机电容器具有高达 68 μF 的稳定温度特性，还包括安全故障模式。

### 特点

容积效率

薄型设计

良好的故障模式

100% 浪涌测试

符合 RoHS 标准且无卤

立创商城:
4.7uF ±20% 75V

欧时:
KEMET T521 系列 4.7μF ±20% 表面安装器件 钽电容器 T521D475M075ATE075, 75V dc, 7343 封装, 75mΩ ESR

艾睿:
Cap Tant Polymer 4.7uF 75VDC D CASE 20% 7.3 X 4.3 X 2.8mm SMD 7343-31 0.075 Ohm 125°C T/R

安富利:
The Organic Capacitor KO-CAP is a solid electrolytic capacitor with a conductive polymer cathode capable of delivering very low ESR and improved capacitance retention at high frequencies. KO-CAP combines the low ESR of multilayer ceramic, the high capacitance of aluminum electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Unlike liquid electrolyte-based capacitors, KO-CAP has a very long operational life and high ripple current capabilities. Developed for use on 12, 24, 28 and 48 volt DC voltage rails. The low ESR of the T521 provides high ripple current capability. KO-CAP"s long-life reliability enables the T521 to be an ideal alternative to liquid-based electrolytic capacitors.

TME:
Capacitor: tantalum-polymer; 4.7uF; 75VDC; Case: D; 2917; ESR:75mΩ

Newark:
# KEMET  T521D475M075ATE075  CAP, TANT, POLYMER, 4.7UF, 75V, 2917
