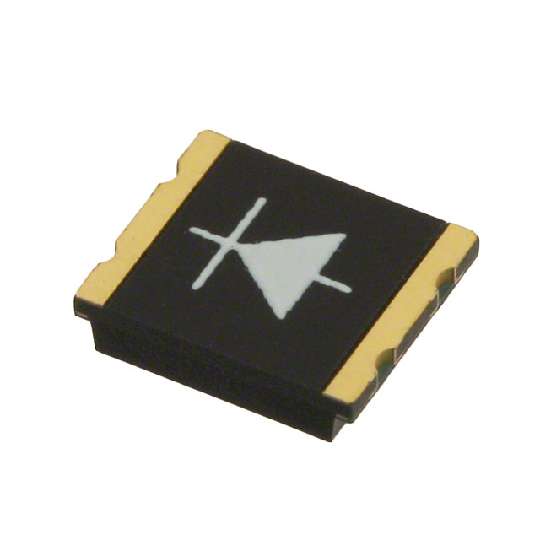

TEMD51x0 系列 PIN 光电二极管Vishay Semiconductors 的此系列 PIN 光电二极管是表面安装 SMD 顶视封装。 它们提供高速和高敏感性,以 870 到 950 nm 波长操作。 TEMD51x0 系列的合适应用包括:IR 辐射探测器、IR 远程控制和数据传输系统。 TEMD51x0 光电二极管的特点: 表面安装 SMD 顶视 尺寸:5 x 4.25 x 1.12 各种光源敏感区 高光源敏感性 日光阻塞滤波器 快速响应时间 半强度角:65° ### IR 光电二极管,Vishay Semiconductor
The is a Silicon PIN Photodiode features high speed and high sensitive. It is a miniature surface mount device SMD including the chip with a 4.4mm² sensitive area and a daylight blocking filter matched with IR emitters operating at wavelength 870 or 950nm. It is suitable for high speed detector for infrared radiation, infrared remote control and free air data transmission systems, e.g. in combination with TSFFxxxx series IR emitters.
上升/下降时间 0.1 ns
针脚数 4
波长 940 nm
视角 130°
峰值波长 940 nm
耗散功率 215 mW
上升时间 100 ns
正向电流 50 mA
正向电压Max 1.3 V
下降时间 100 ns
下降时间Max 100 ns
上升时间Max 100 ns
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 215 mW
安装方式 Surface Mount
引脚数 2
封装 SMD-4
长度 4.2 mm
宽度 5 mm
高度 1.08 mm
封装 SMD-4
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Communications & Networking, Automation & Process Control, 车用, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
