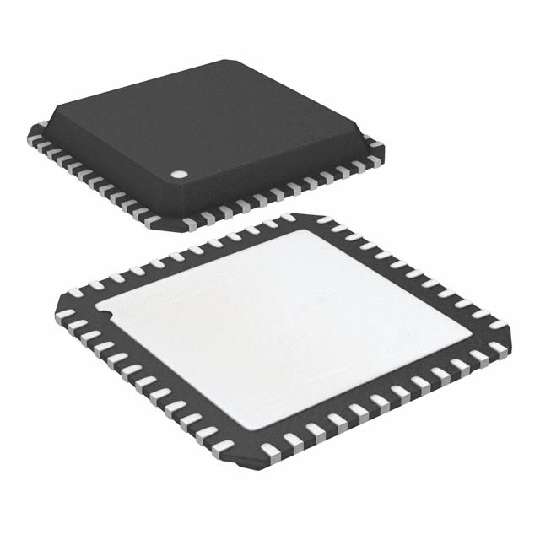

IC TXRX WDECT/ISM 2.4GHz 48QFN
Description
The T2802 is an RF IC for low-power applications in the 2.45 GHz ISM band. The QFN48-packaged IC is a complete transceiver including image rejection mixer, IF amplifier, FM demodulator, baseband filter, RSSI, TX preamplifier, power-ramping generator for power amplifiers, integrated synthesizer, fully integrated VCO, TX filter and modulation compensation circuit for advanced closed-loop modulation concept. No mechanical tuning is necessary in production.
Features
• Fully Integrated TX/RX with VCO
• Fast Settling Synthesizer
• Unlimited Multi-slot Operation with Advanced Closed-loop Modulation
• No Mechanical Tuning Required
• Low Current Consumption
• Auxiliary Voltage Regulator On-chip 3.2 V to 4.6 V
• Supply-voltage Range 3 V to 4.6 V Regulated
• Ramp-signal Generator for Power Ramping and Power Control of External SiGe Power Amplifier T7024 and T7026
• Supports Multiple Reference Clocks 10.368 MHz/13.824 MHz/20.736 MHz/27.648 MHz
• TX Preamplifier with 3 dBm Output Power at 2.45 GHz
• Few Low-cost External Components
