TLE4905LHALA1概述

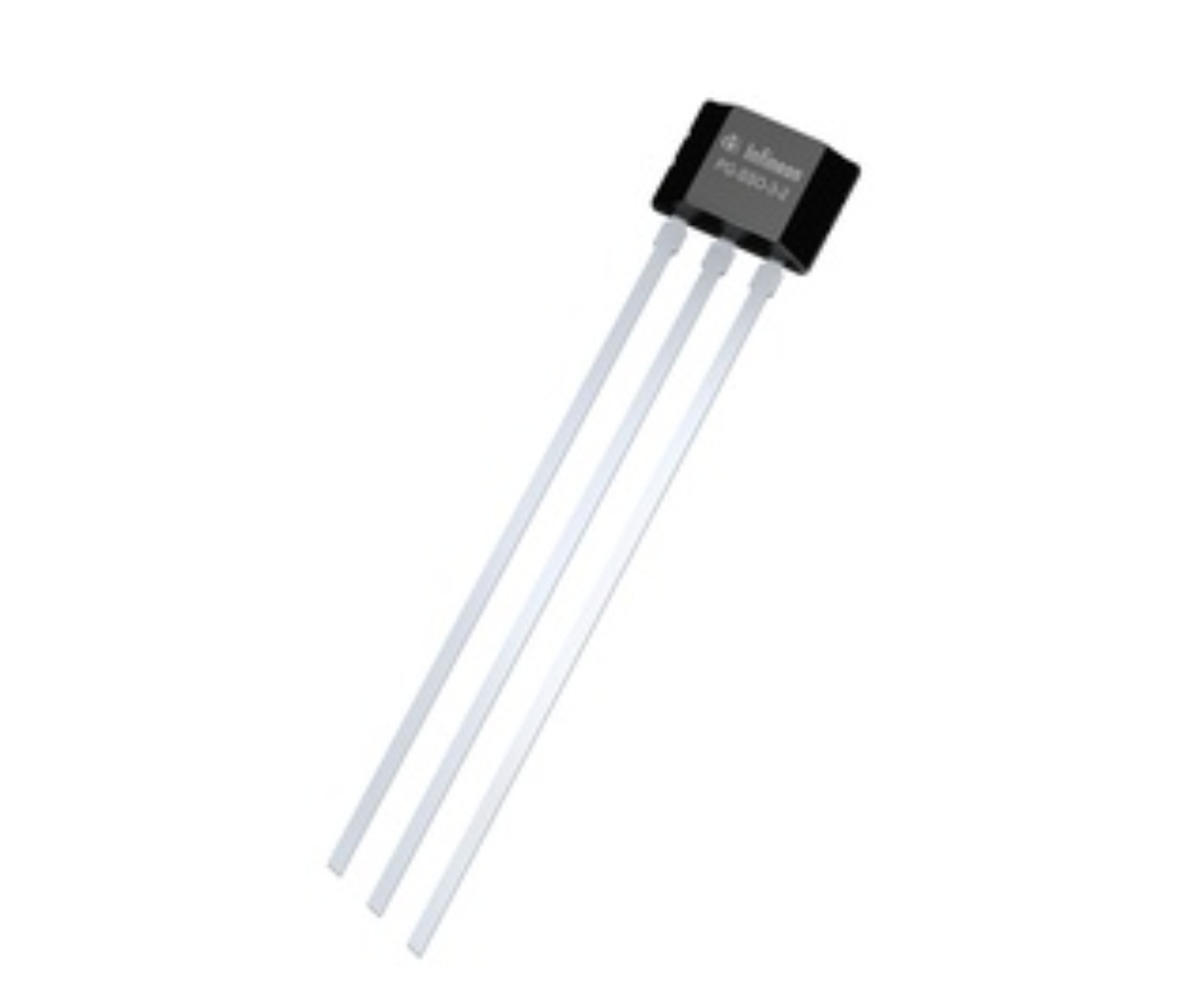

Hall Effect Sensor 100mA Unipolar 5V/9V/12V/15V/18V 3Pin SSO Ammo
This precision engineered Hall effect sensor from Technologies operates as an analog transducer to directly return a voltage. This part can handle a current up to 100 mA. This device"s minimum operating supply voltage of 3.8 V, while its maximum is 24 V. This part has a temperature range of -40 °C to 150 °C.
TLE4905LHALA1中文资料参数规格
技术参数
输出电流 100 mA
输出电流Max 100 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3.8V ~ 24V
封装参数
安装方式 Through Hole
引脚数 3
封装 SSO-3-02
外形尺寸
封装 SSO-3-02
物理参数
工作温度 -40℃ ~ 150℃ TJ
其他
产品生命周期 Not Recommended for New Designs
制造应用 Rotational indexing etc., Position/proximity indicators, Brushless DC motor commutation
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
海关信息
ECCN代码 EAR99
在线购买TLE4905LHALA1
型号： TLE4905LHALA1
制造商：
Infineon
英飞凌
描述：Hall Effect Sensor 100mA Unipolar 5V/9V/12V/15V/18V 3Pin SSO Ammo
