TLE49611KXTSA1概述

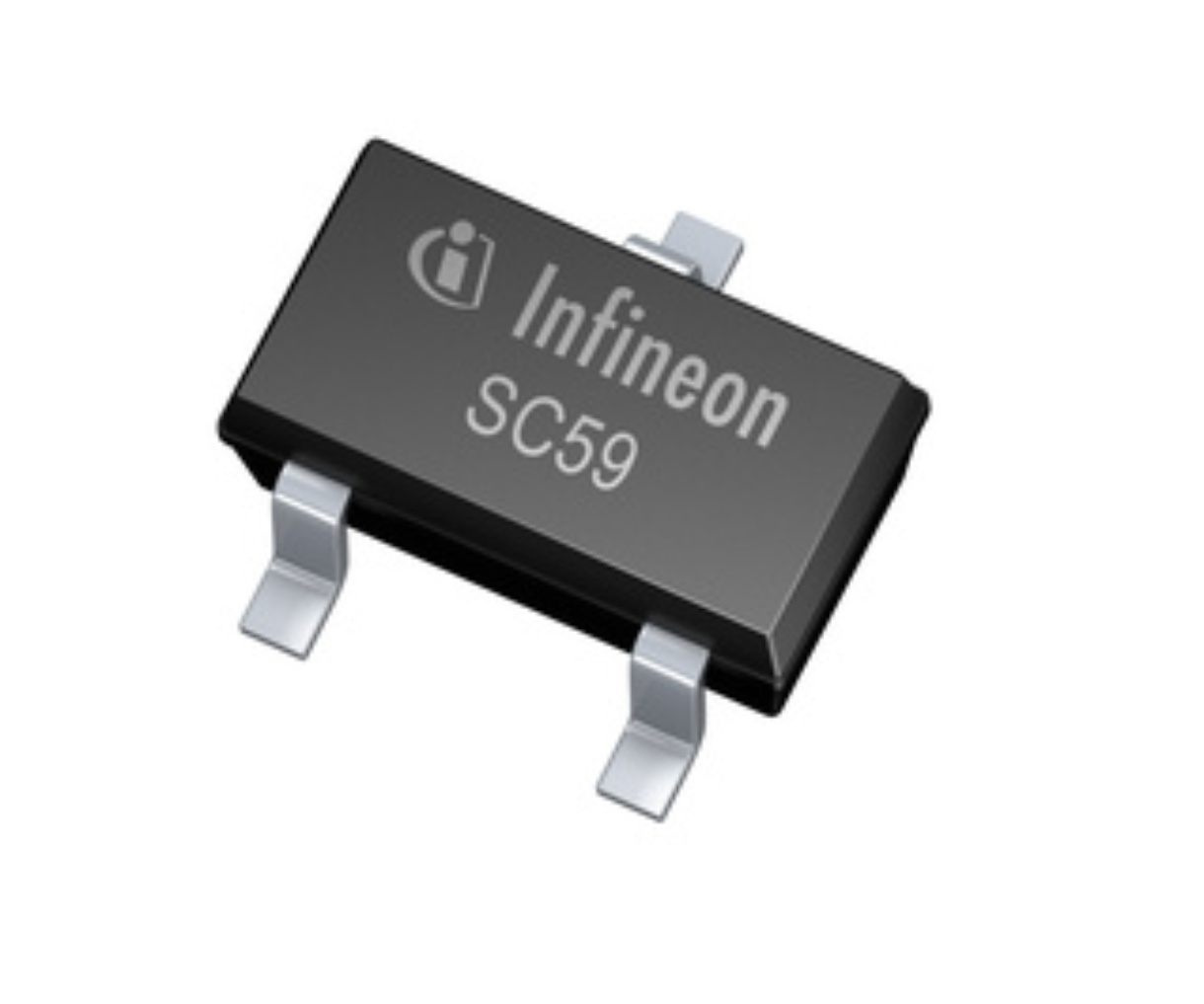

霍尔效应开关, 高精准度, 双极性, 0.002 T, -0.002 T, 3 V, 32 V, SC-59
This precision engineered Hall effect sensor from Technologies operates as an analog transducer to directly return a voltage. This part can handle a current up to 25 mA. This device"s minimum operating supply voltage of 3 V, while its maximum is 32 V. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
TLE49611KXTSA1中文资料参数规格
技术参数
输出电流 25 mA
输出电流Max 25 mA
电源电压 3V ~ 32V
电源电压Max 32 V
电源电压Min 3 V
封装参数
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
外形尺寸
封装 SOT-23-3
物理参数
工作温度 -40℃ ~ 170℃ TJ
其他
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Gear stick position detection, Power closing index counting, Seat belt position detection, BLDC commutation, Window lifter index counting
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
