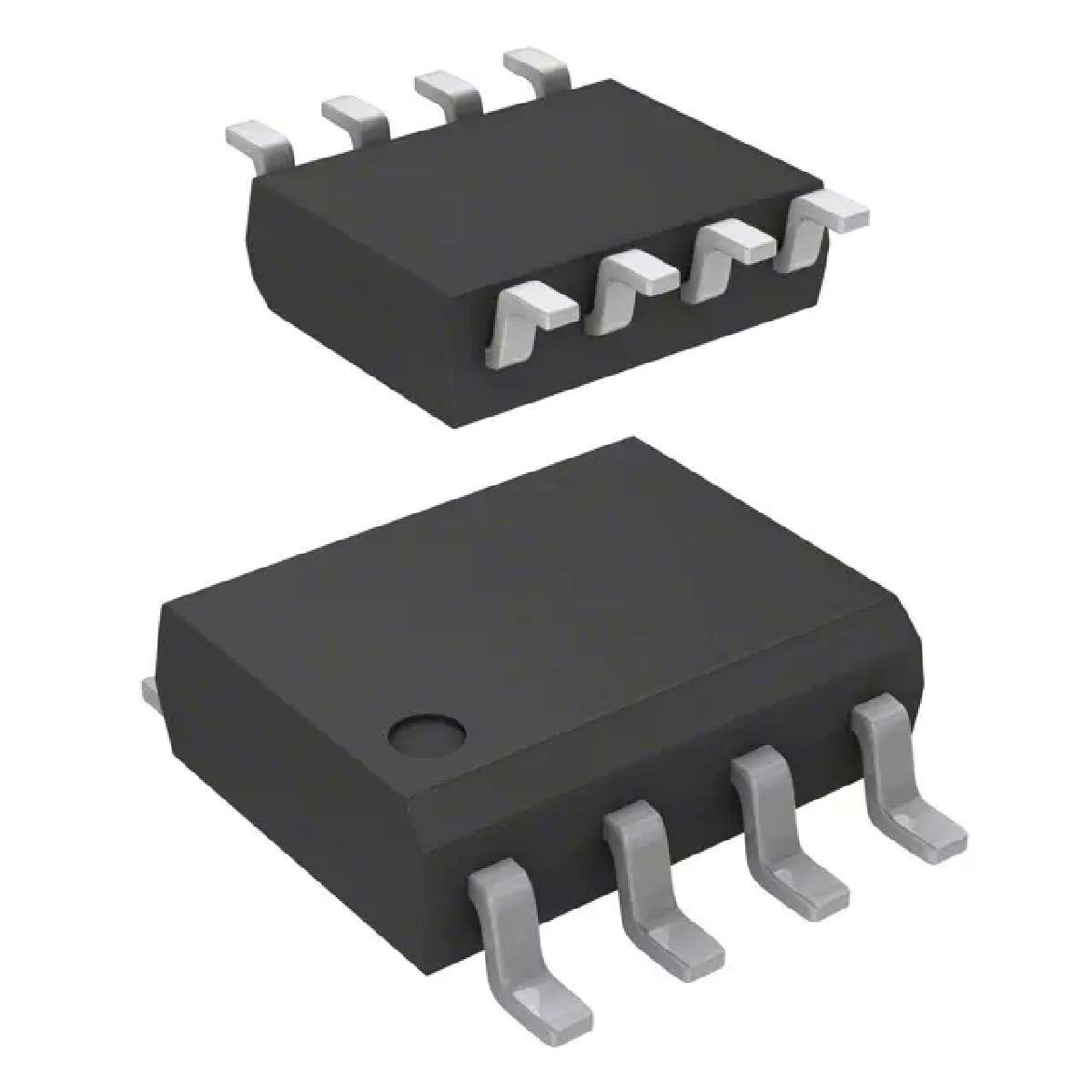

TLE5011

GMR角度传感器 GMR Angle Sensor

Description:

The is a 360° angle sensor that detects the orientation of a magnetic field by measuring sine and cosine angle components with monolithic integrated Giant Magneto Resistance iGMR elements. Data communications are accomplished with a bi-directional Synchronous Serial Communication SSC interface that is SPI compatible. The sine and cosine values can be read out digitally. These signals can be digitally processed to calculate the angle orientation of the magnetic field magnet. This calculation can be done by using a COordinate Rotation DIgital Computer CORDIC algorithm. It is possible to connect more than one TLE5011 to one SSC interface of a microcontroller for redundancy or any other reason. If multiple TLE5011 devices are used, the synchronization of the connected TLE5011 is performed by a broadcast command. Each connected TLE5011 can be addressed by a dedicated Chip Select CS pin.

Summary of Features:

.

Giant Magneto Resistance GMR-based principle

.

Integrated magnetic field sensing for angle measurement

.

Designed for 3.3 V and 5 V systems

.

Full 0 - 360° angle measurement

.

Highly accurate single-bit SD-ADC

.

16-bit representation of sine / cosine values on the interface

.

Wide magnetic operating range: 30mT to 50mT

.

Bi-directional SSC interface up to 2 Mbit/s

.

3-pin SSC interface, SPI compatible with open drain

.

ADCs and filters synchronized with external commands via SSC

.

Test resistors for simulating angle values

.

Core supply voltage 2.5 V

.

0.25-μm CMOS technology

.

Automotive qualified: -40°C to +150°C junction temperature

.

Latch-up immunity according JEDEC standard

.

ESD > 4 kV HBM

.

Green package with lead-free Pb-free plating
