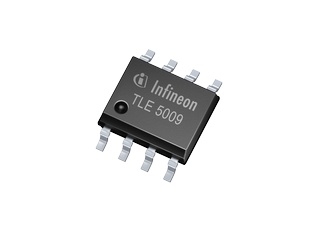

GMR角度传感器, 模拟正弦/余弦电压输出, AEC-Q100,3V-5.5V, SOIC-8
磁阻 传感器 角度 外磁铁，不含 鸥翼
得捷:
SENSOR ANGLE 360DEG SMD
欧时:
Rotary Position Sensor,TLE5009 E2000
立创商城:
TLE5009E2000FUMA1
贸泽:
Board Mount Hall Effect / Magnetic Sensors POSITION&CURRENT; SENSORS
艾睿:
Use this TLE5009E2000FUMA1 angular and linear position sensor from Infineon Technologies to easily detect linear, angular, or rotational displacement of your electronic device. This device has a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 150 °C.
安富利:
Magnetoresistive Sensor 8-Pin DSO T/R
Chip1Stop:
Rotary Position Sensor 5.5V Analog Output Automotive 8-Pin DSO T/R
Verical:
Rotary Position Sensor 5.5V Analog Output Automotive 8-Pin DSO T/R
针脚数 8
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8
封装 PG-DSO-8
封装 PG-DSO-8
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Rotary switches, Rotor position sensing for electric motor commutation, Steering angle sensing, Valve or flap position sensing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
