TP32P008000

TP32P008000图片1

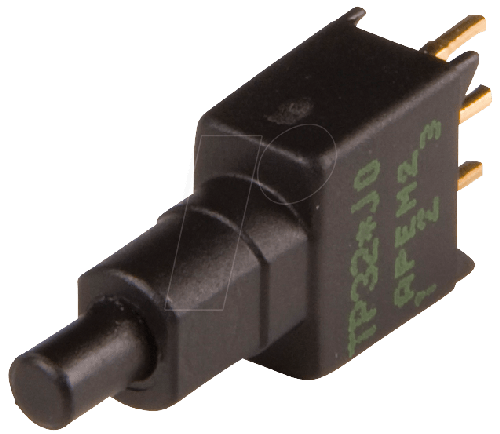

TP32P008000图片2
TP32P008000图片3
TP32P008000图片4
TP32P008000概述

按钮开关, SPDT, 0.4VA, 20V, 通孔安装

按钮 SPDT 标准 通孔


得捷:
SWITCH PUSH SPDT 0.4VA 20V


立创商城:
TP32P008000


e络盟:
按钮开关, SPDT, 0.4VA, 20V, 通孔安装


艾睿:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


Chip1Stop:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


Verical:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


MASTER:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


Powell:
Sealed Sub-Miniature Pushbutton


Online Components:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


Electro Sonic:
Switch Push Button ON Mom SPDT Short Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole


TP32P008000中文资料参数规格
技术参数

额定电压DC 20 V

额定电压AC 20 V

排数 1

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压DC Max 20 V

额定电压AC Max 20 V

接触电阻Max 50 mΩ

封装参数

安装方式 Through Hole

封装 -

外形尺寸

长度 8.1 mm

宽度 5 mm

高度 17.75 mm

封装 -

物理参数

触点材质 Brass

工作温度 -30℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

TP32P008000引脚图与封装图
TP32P008000引脚图

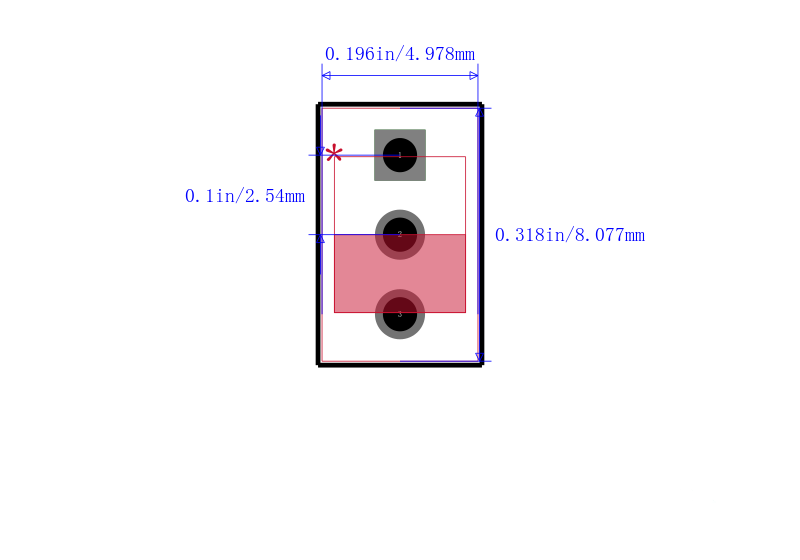

TP32P008000封装图

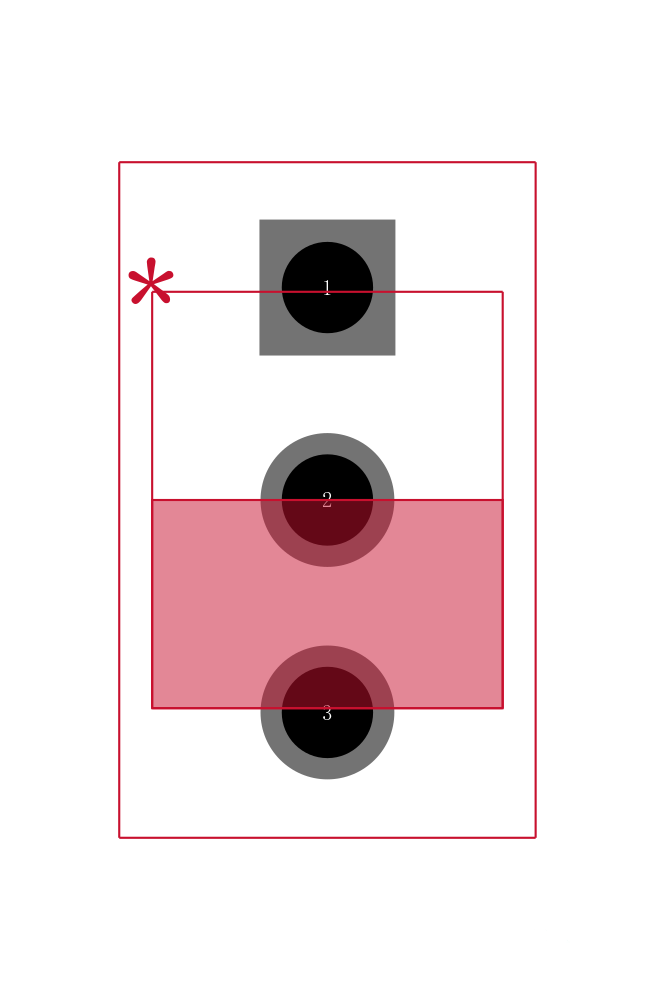

TP32P008000封装焊盘图
在线购买TP32P008000
型号: TP32P008000
制造商: Apem Components
描述:按钮开关, SPDT, 0.4VA, 20V, 通孔安装
