TEXAS INSTRUMENTS TMP300AIDCKT. 芯片, 温度传感器, ±2°C, SC-70-6
This temperature and humidity sensor developed by Texas Instruments will record analog ambient conditions in a room. It has an analog output. This device"s minimum operating supply voltage of 1.8 V, while its maximum is 18 V. This part has a temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
电源电压DC 1.80V min
输出电压 780 mV
供电电流 110 µA
通道数 1
针脚数 6
静态电流 110 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 ℃
电源电压 1.8V ~ 18V
电源电压Max 18 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 6

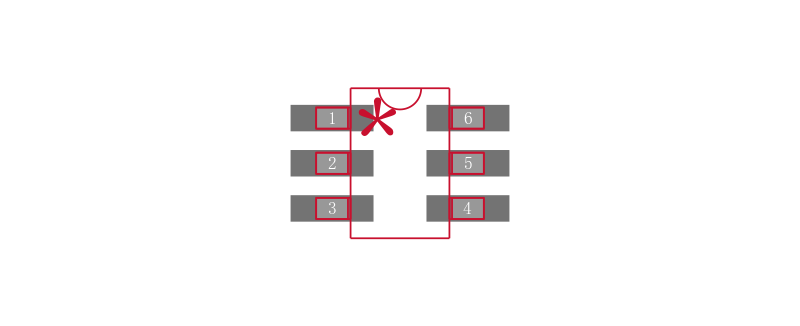

封装 SC-70-6
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 150℃
产品生命周期 Not Recommended for New Designs
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TMP300AIDCKT TI 德州仪器 | 当前型号 | 当前型号 |
TMP300BIDBVT 德州仪器 | 完全替代 | TMP300AIDCKT和TMP300BIDBVT的区别 |
TMP300AIDBVT 德州仪器 | 完全替代 | TMP300AIDCKT和TMP300AIDBVT的区别 |
