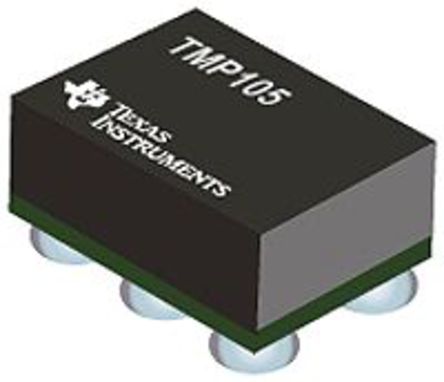

TEXAS INSTRUMENTS TMP105YZCT 温度传感器芯片, 数字式, ± 0.5°C, -40 °C, +125 °C, DSBGA, 6 引脚
2 线数字
Texas Instrument 的 2 线数字温度传感器系列均随附片上 ADC。 多数可以测量多个设备的温度,并具有 SMBus 和 I²C 兼容接口。
该传感器适合各种应用,例如移动电话、笔记本电脑、热系统管理和环境监测以及 HVAC。
**特点;**
2 线操作
关闭模式
可编程温度分辨率在 9 至 14 位之间变化(取决于设备)
得捷:
SENSOR DIGITAL -40C-125C 6DSBGA
立创商城:
TMP105YZCT
德州仪器TI:
±2°C, 2.6V to 3.3V digital temperature sensor with I2C/SMBus interface & Alert fun
欧时:
### 2 线数字温度传感器Texas Instrument 的 2 线数字温度传感器系列均随附片上 ADC。 多数可以测量多个设备的温度,并具有 SMBus 和 I²C 兼容接口。 该传感器适合各种应用,例如移动电话、笔记本电脑、热系统管理和环境监测以及 HVAC。 **特点;** 2 线操作 关闭模式 可编程温度分辨率在 9 至 14 位之间变化(取决于设备) ### 温度和湿度传感器,Texas Instruments
e络盟:
TEXAS INSTRUMENTS TMP105YZCT 温度传感器芯片, 数字式, ± 0.5°C, -40 °C, +125 °C, DSBGA, 6 引脚
艾睿:
This TMP105YZCT temperature and humidity sensor from Texas Instruments can provide two different sets of data for your processing needs. It has a digital output. This part has a resolution of 12Max bit. This device has a minimum operating supply voltage of 2.6 V and a maximum of 3.3 V. This part has a temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
安富利:
Temp Sensor Digital Serial 2-Wire 6-Pin DSBGA T/R
Chip1Stop:
Temp Sensor Digital Serial 2-Wire 6-Pin DSBGA T/R
Verical:
Temp Sensor Digital Serial 2-Wire, I2C, SMBus 6-Pin DSBGA T/R
DeviceMart:
IC DGTL TEMP SENSOR 2WIRE 6DSBGA
电源电压DC 2.60V min
输出电压 400 mV
输出电流 4 mA
供电电流 0.085 mA
针脚数 6
位数 12
静态电流 50.0 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 ℃
电源电压 2.6V ~ 3.3V
电源电压Max 3.3 V
电源电压Min 2.6 V
安装方式 Surface Mount
引脚数 6
封装 DSBGA-6
长度 1.61 mm
宽度 1.11 mm
高度 0.325 mm
封装 DSBGA-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TMP105YZCT TI 德州仪器 | 当前型号 | 当前型号 |
TMP105YZCRG4 德州仪器 | 完全替代 | TMP105YZCT和TMP105YZCRG4的区别 |
TMP105YZCTG4 德州仪器 | 完全替代 | TMP105YZCT和TMP105YZCTG4的区别 |
TMP105YZCR 德州仪器 | 类似代替 | TMP105YZCT和TMP105YZCR的区别 |
