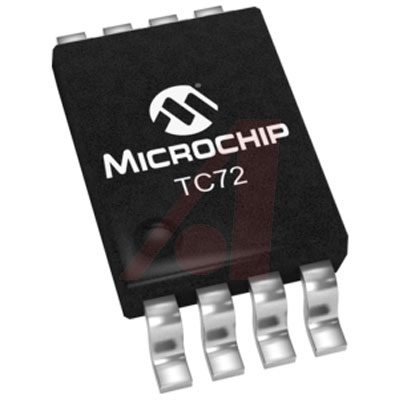

数字温度传感器, SPI⑩接口 Digital Temperature Sensor with SPI⑩ Interface
* Temperature-to-Digital Converter * SPI Compatible Interface * 10-Bit Resolution 0.25°C/Bit * ±2°C maximum Accuracy from -40°C to +85°C * ±3°C maximum Accuracy from -55°C to +125°C * 2.65V to 5.5V Operating Range * Low Power Consumption: - 250 μA typical Continuous Temperature Conversion Mode - 1 μA maximum Shutdown Mode * Power Saving One-Shot Temperature Measurement * Industry Standard 8-Pin MSOP Package * Space Saving 8-Pin DFN 3x3 mm Package
得捷:
SENSOR DIGITAL -55C-125C 8MSOP
立创商城:
TC72-2.8MUATR
贸泽:
Board Mount Temperature Sensors High-Accuracy 10-bit
艾睿:
Temp Sensor Digital Serial 4-Wire, SPI 8-Pin MSOP T/R
Allied Electronics:
High-Accuracy, 10-bit Thermal Sensor with SPITM Interface
安富利:
Temp Sensor Digital Serial 4-Wire, SPI 8-Pin MSOP T/R
Chip1Stop:
Temp Sensor Digital Serial 4-Wire, SPI 8-Pin MSOP T/R
Win Source:
Digital Temperature Sensor with SPI Interface
电源电压DC 2.70V min
位数 10
耗散功率 250 mW
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 250 mW
精度 ±3 ℃
电源电压 2.65V ~ 5.5V
电源电压Max 5.5 VDC
电源电压Min 2.6 VDC
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
高度 0.85 mm
封装 MSOP-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TC72-2.8MUATR Microchip 微芯 | 当前型号 | 当前型号 |
TC72-2.8MUA 微芯 | 类似代替 | TC72-2.8MUATR和TC72-2.8MUA的区别 |
