SPI串行接口,温度分辨率为0.25℃
Do you need temperature and humidity information? This temperature and humidity sensor manufactured by Technology will do just that. It has a digital output. This part has a resolution of 10 bit. This device"s minimum operating supply voltage of 2.65 V, while its maximum is 5.5 V. This part has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
电源电压DC 2.70V min
针脚数 8
位数 10
耗散功率 250 mW
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 250 mW
精度 ±3℃ Max
电源电压 2.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.65 V
安装方式 Surface Mount
引脚数 8

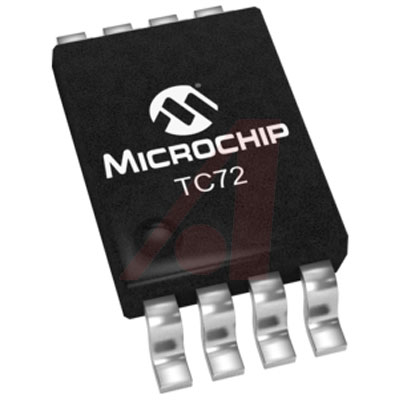

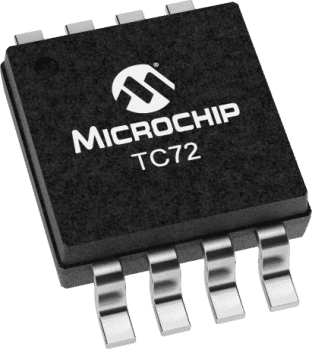

封装 MSOP-8
封装 MSOP-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TC72-3.3MUATR Microchip 微芯 | 当前型号 | 当前型号 |
TC72-3.3MUA 微芯 | 完全替代 | TC72-3.3MUATR和TC72-3.3MUA的区别 |
