微小的串行数字温度传感器 Tiny Serial Digital Thermal Sensor
This temperature and humidity sensor from Technology will sample ambient conditions. It has a digital output. This part has a resolution of 8 bit. This device"s minimum operating supply voltage of 2.7 V, while its maximum is 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 2.70V min
工作电压 2.7V ~ 5.5V
输出电流 50 mA
供电电流 200 µA
位数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 VDC
电源电压Min 2.7 VDC
安装方式 Through Hole
引脚数 5

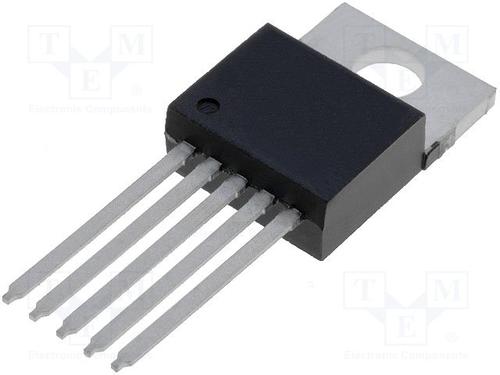

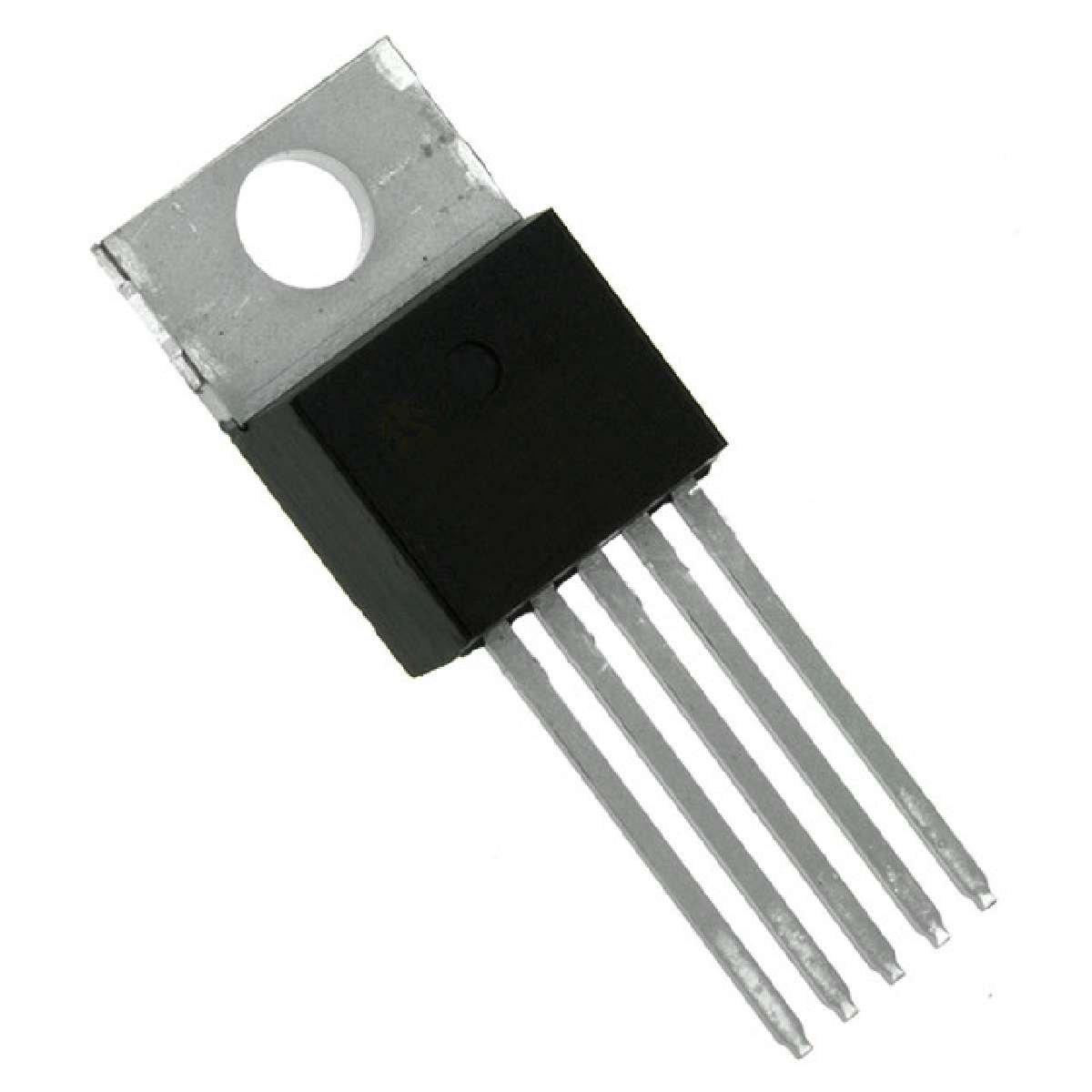

封装 TO-220-5
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
