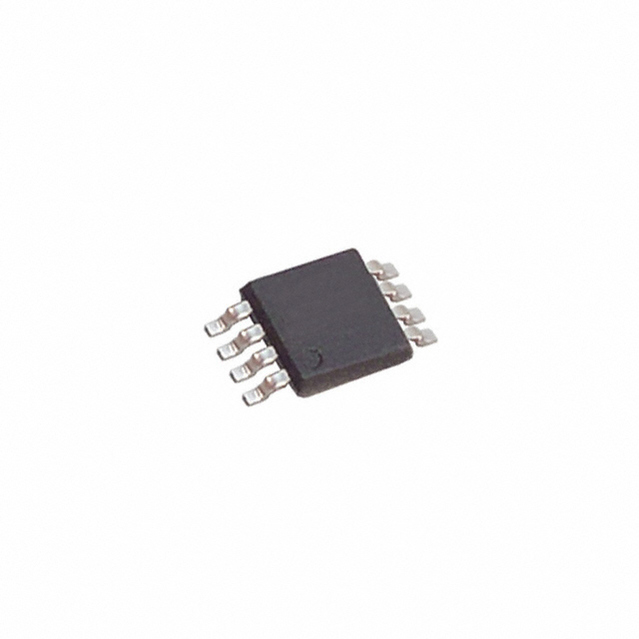

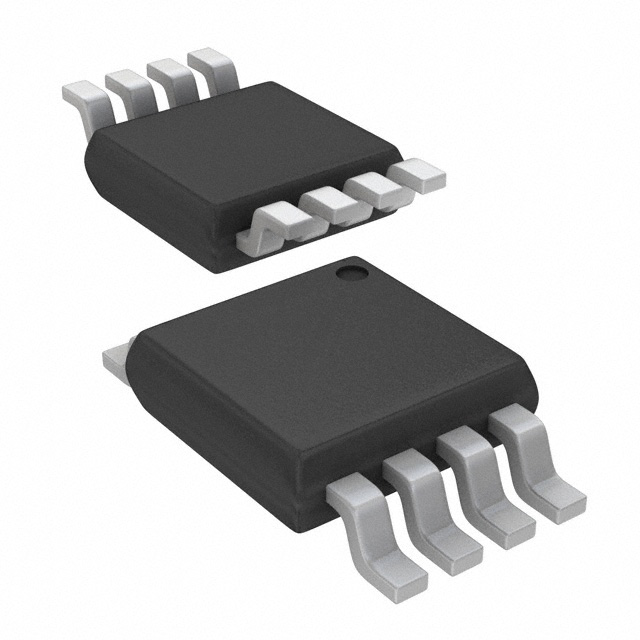

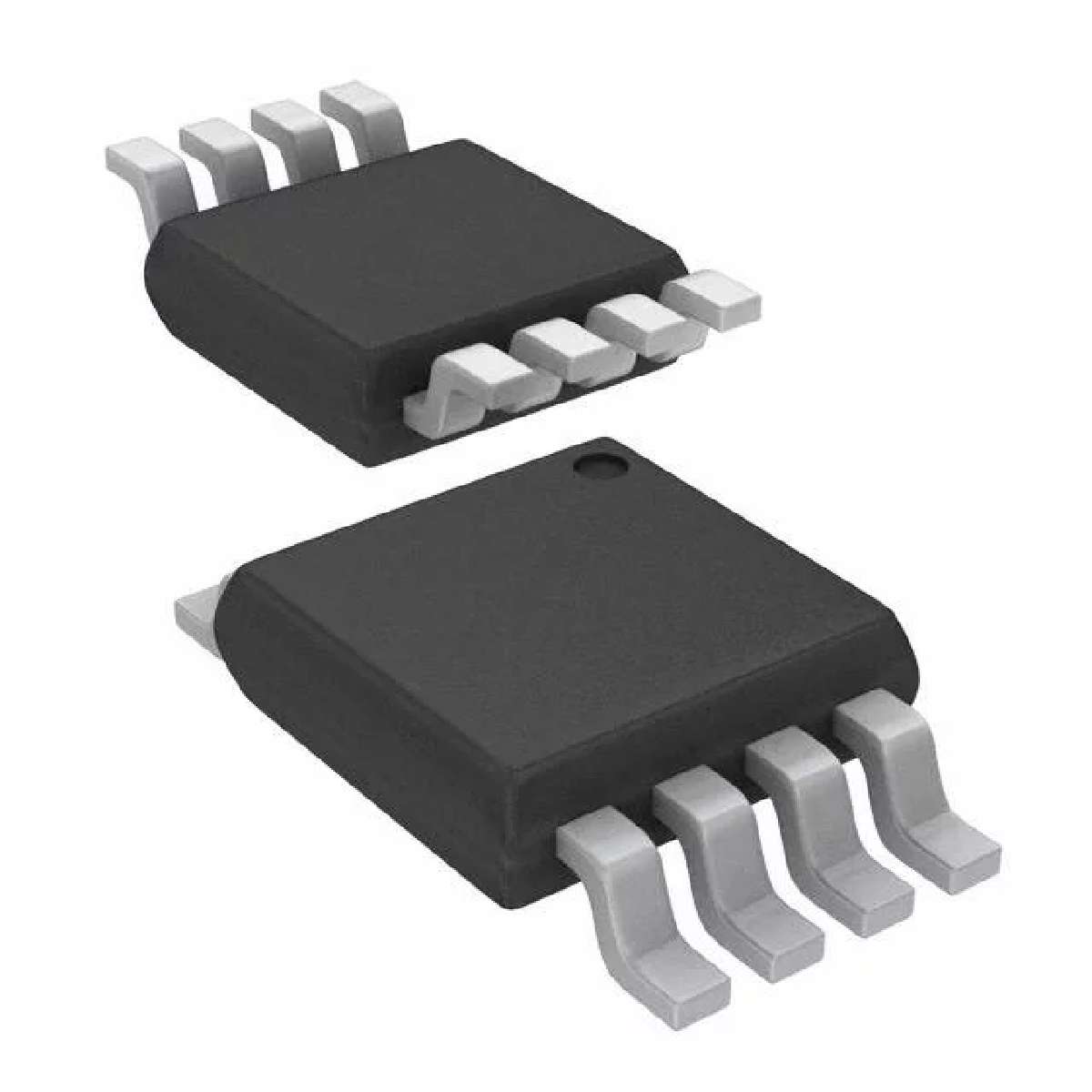

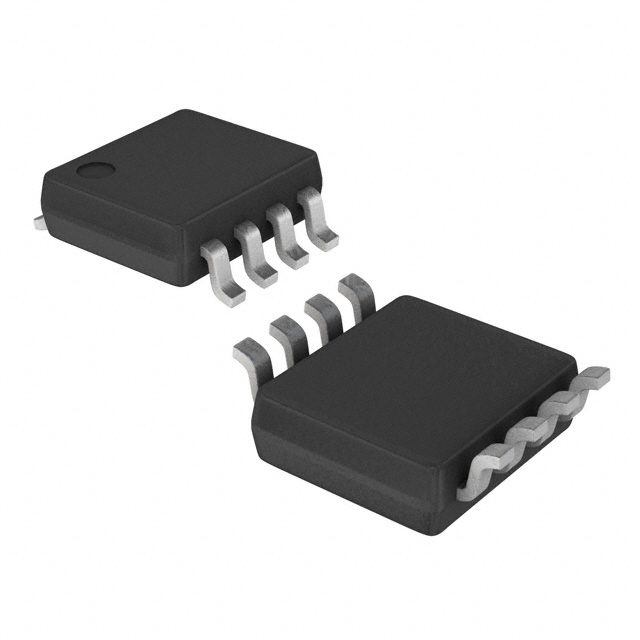

TMP411ADGKRG4

为± 1A ℃的远程和本地温度传感器，具有N -因子和串联电阻校正 ±1°C Remote and Local TEMPERATURE SENSOR with N-Factor and Series Resistance Correction

DESCRIPON

The TMP411 is a remote temperature sensor monitor with a built-in local temperature sensor. The remote temperature sensor diode-connected transistors are typically low-cost, NPN- or PNP-type transistors or diodes that are an integral part of microcontrollers, microprocessors, or FPGAs.

FEATURES

±1°C REMOTE DIODE SENSOR

±1°C LOCAL TEMPERATURE SENSOR

PROGRAMMABLE NON-IDEALITY FACTOR

SERIES RESISTANCE CANCELLATION

ALERT FUNCTION

PROGRAMMABLE RESOLUTION: 9 to 12 Bits

PROGRAMMABLE THRESHOLD LIMITS

TWO-WIRE/SMBusSERIAL INTERFACE

MINIMUM AND MAXIMUM TEMPERATURE MONITORS

MULTIPLE INTERFACE ADDRESSES

ALERT/THERM2PIN CONFIGURATION

DIODE FAULT DETECTION

APPLICATIONS

LCD/DLP/LCOS PROJECTORS

SERVERS

INDUSTRIAL CONTROLLERS

CENTRAL OFFICE TELECOM EQUIPMENT

DESKTOP AND NOTEBOOK COMPUTERS

STORAGE AREA NETWORKS SAN

INDUSTRIAL AND MEDICAL EQUIPMENT

PROCESSOR/FPGA TEMPERATURE MONITORING
