低输入电压模式同步降压控制器 LOW-INPUT VOLTAGE-MODE SYNCHRONOUS BUCK CONTROLLER
降压 稳压器 正 输出 降压 - DC DC 切换控制器 IC 10-MSOP-PowerPad
得捷:
IC REG CTRLR BUCK 10MSOP
艾睿:
Look no further! Texas Instruments has the solution to pulse-width modulation with their TPS40003DGQ voltage mode PWM controller. With an output that has a voltage of 0.7Min V, this is power management at its best. It has single PWM output. This voltage mode driver supports buck topology. You can operate this at a switching frequency of 700 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 2.25 V and a maximum of 5.5 V. This voltage mode driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This voltage mode driver&s;s maximum duty cycle is 97 %.
安富利:
Voltage Mode PWM Controller 0.7V 10-Pin HTSSOP EP Tube
Chip1Stop:
Voltage Mode PWM Controller 0.7V 10-Pin HVSSOP EP Tube
Verical:
Voltage Mode PWM Controller 0.7V 10-Pin HVSSOP EP Tube
力源芯城:
低输入电压方式同步降压控制器
输出接口数 1
输出电压 0.7 V
输出电流 15.0 A
上升时间 35 ns
开关频率 600 kHz
占空比 97 %
输入电压Max 5.5 V
输入电压Min 2.25 V
输出电流Max 15 A
最大占空比 0.93
下降时间 25 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.25V ~ 5.5V
输入电压 2.25V ~ 5.5V
安装方式 Surface Mount
引脚数 10

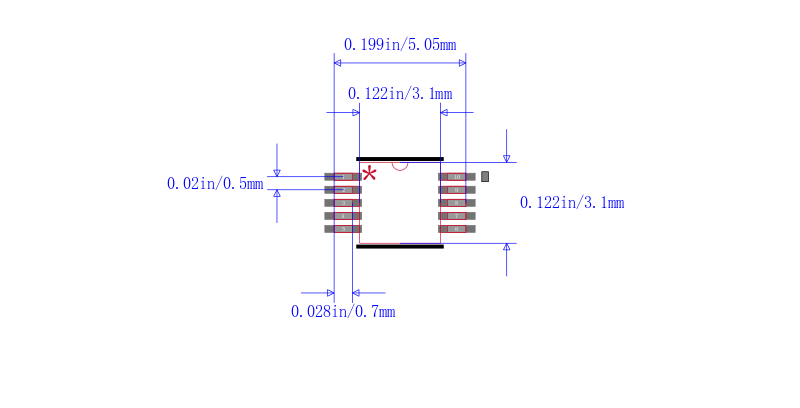

封装 PowerPad-MSOP-10
封装 PowerPad-MSOP-10
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS40003DGQ TI 德州仪器 | 当前型号 | 当前型号 |
TPS40009DGQ 德州仪器 | 类似代替 | TPS40003DGQ和TPS40009DGQ的区别 |
TPS40000DGQ 德州仪器 | 类似代替 | TPS40003DGQ和TPS40000DGQ的区别 |
TPS40002DGQ 德州仪器 | 类似代替 | TPS40003DGQ和TPS40002DGQ的区别 |
