1.5 GHz至2.5 GHz的正交调制器 1.5-GHz to 2.5-GHz QUADRATURE MODULATOR
The TRF3702 is an ultralow-noise direct quadrature modulator that is capable of converting complex input signals from baseband or IF directly up to RF. An internal analog combiner sums the real and imaginary components of the RF outputs. This combined output can feed the RF preamp at frequencies of up to 2.5 GHz. The modulator is implemented as a double-balanced mixer. An internal local oscillator LO phase splitter accommodates a single-ended LO input, eliminating the need for a costly external balun.
频率 1.50 GHz
电源电压DC 4.50V min
供电电流 170 mA
测试频率 1.842 GHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

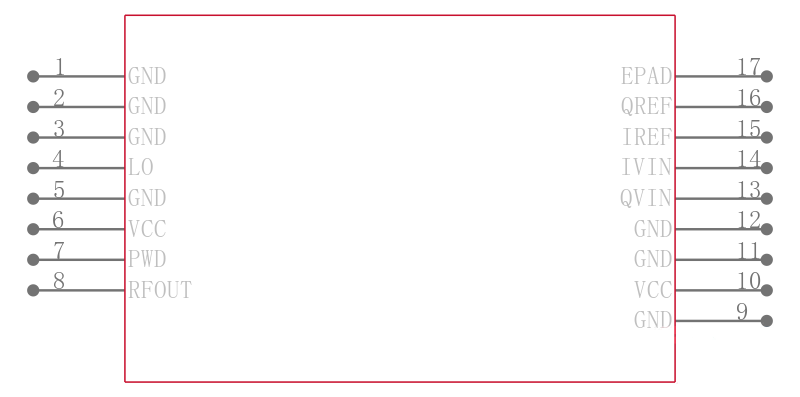

引脚数 16

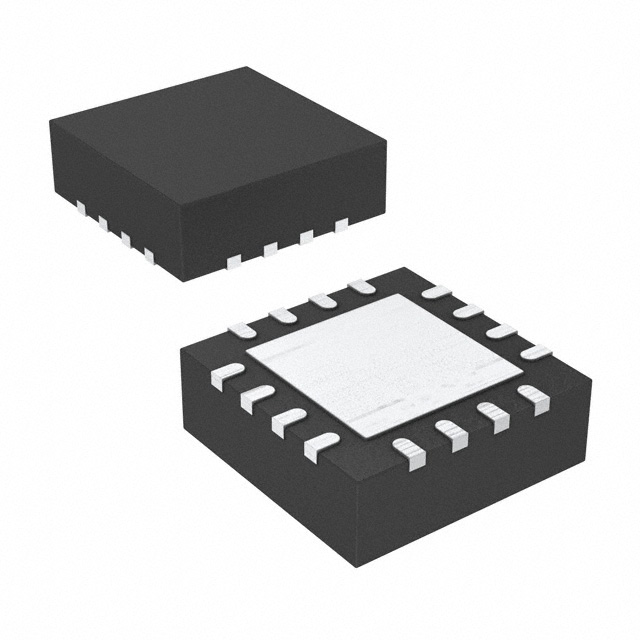

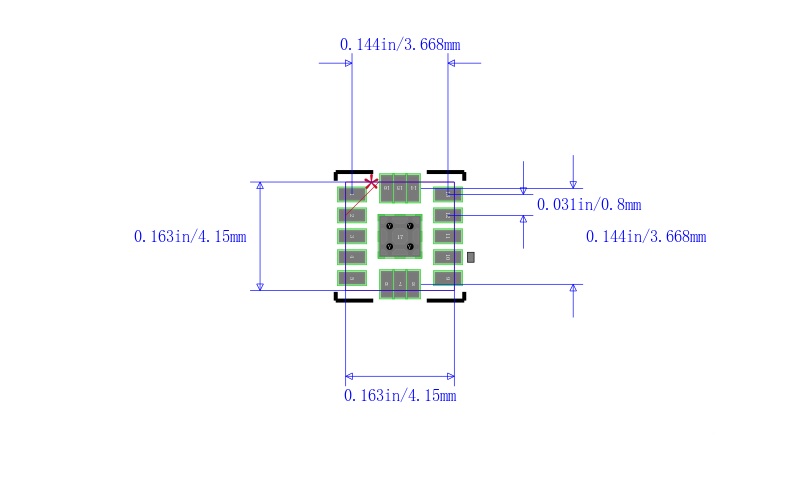

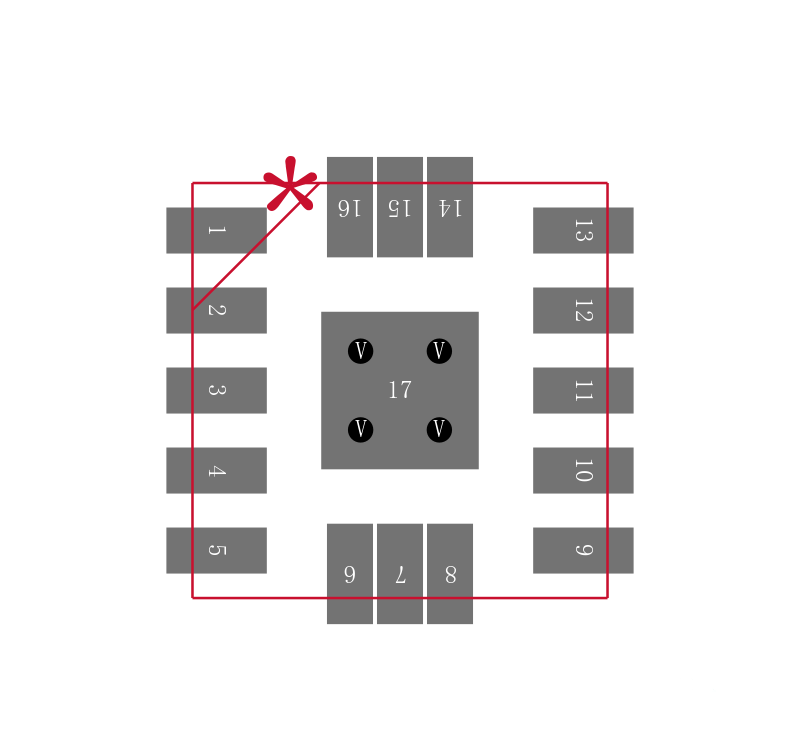

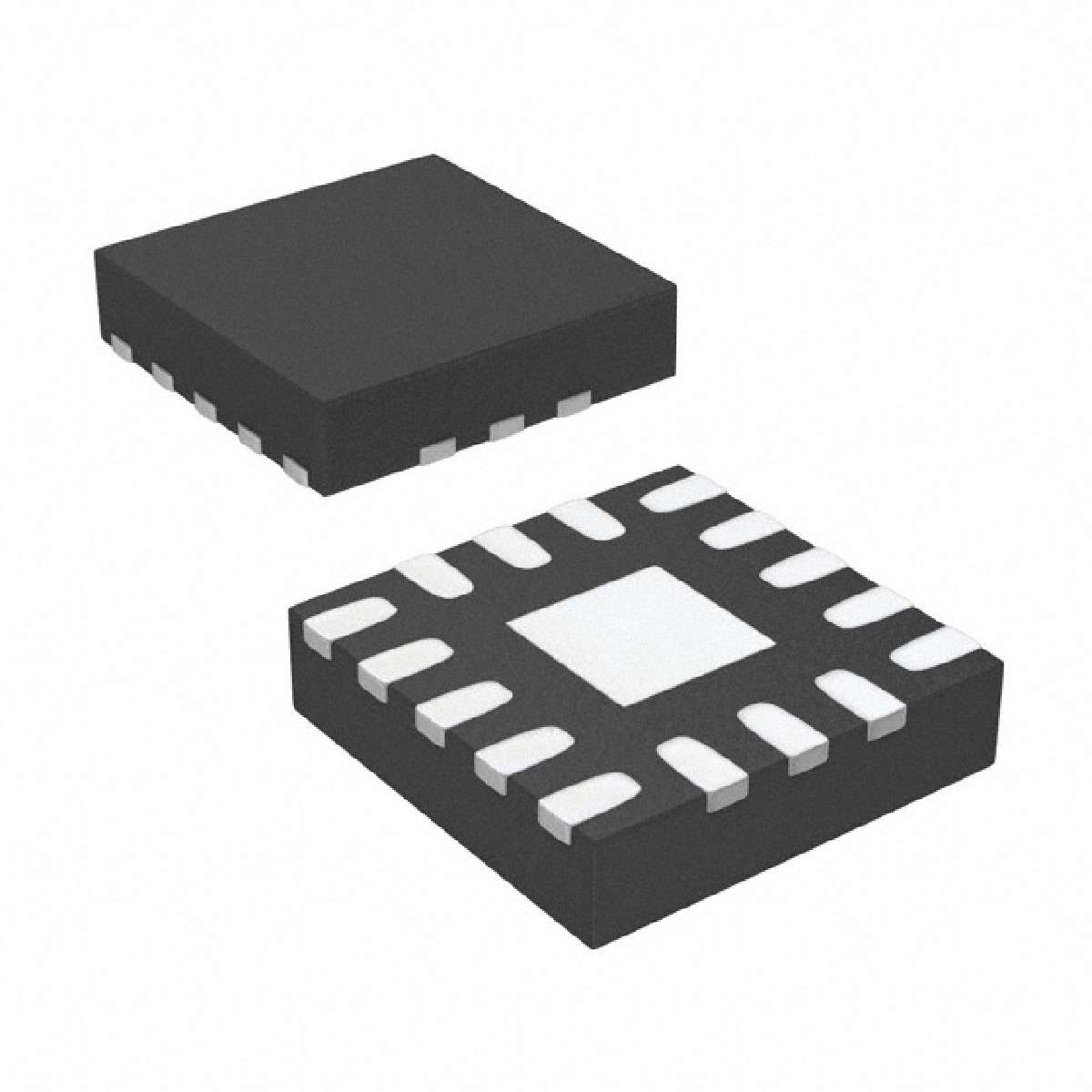

封装 VQFN-16
长度 4 mm
宽度 4 mm
高度 0.9 mm
封装 VQFN-16
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TRF3702IRHC TI 德州仪器 | 当前型号 | 当前型号 |
TRF3702IRHCG4 德州仪器 | 完全替代 | TRF3702IRHC和TRF3702IRHCG4的区别 |
TRF3701IRHC 德州仪器 | 类似代替 | TRF3702IRHC和TRF3701IRHC的区别 |
