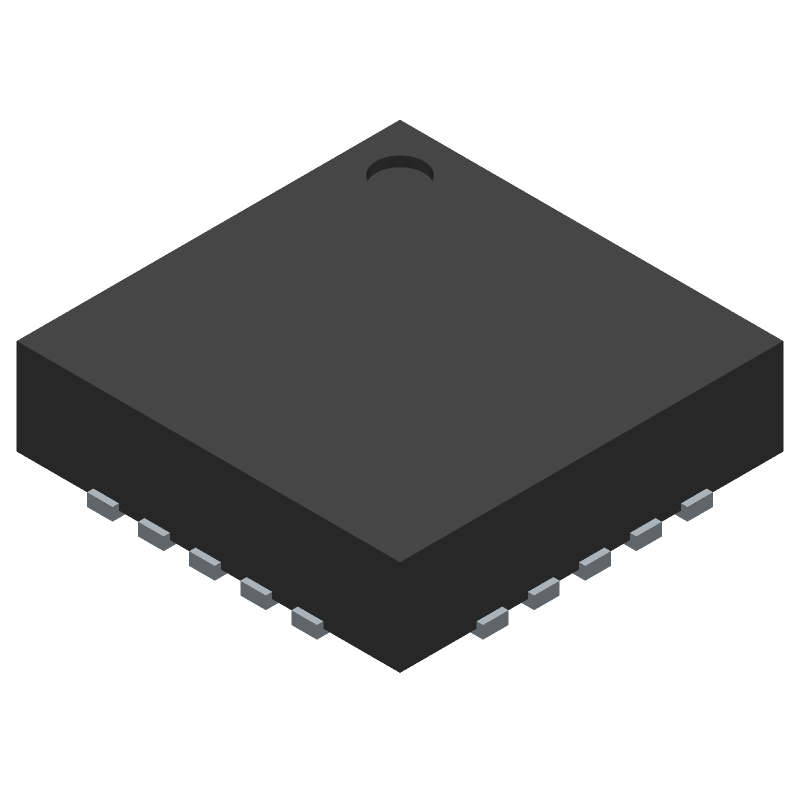

TEXAS INSTRUMENTS TXS02324RUKR 芯片, 多路复用器, 双路, QFN-20
The TXS02324 is a complete dual-supply standby Smart Identity Module SIM card solution for interfacing wireless baseband processors with two individual SIM subscriber cards to store data for mobile handset applications. It is a custom device which is used to extend a single SIM/UICC interface to be able to support two SIMs/UICCs.
The device complies with ISO/IEC Smart-Card Interface requirements as well as GSM and 3G mobile standards. It includes a high-speed level translator capable of supporting Class-B 2.95 V and Class-C 1.8 V interfaces, two low-dropout LDO voltage regulators that have output voltages that are selectable between 2.95-V Class-B and 1.8-V Class-C interfaces, an integrated "fast-mode" 400 kb/s "slave" I2C control register interface for configuration purposes, a 32-kHz clock input for internal timing generation.
The voltage-level translator has two supply voltage pins. VDDIO sets the reference for the baseband interface and can be operated from 1.7 V to 3.3 V. VSIM1 and VSIM2 are programmed to either 1.8 V or 2.95 V, each supplied by an independent internal LDO regulator. The integrated LDO accepts input battery voltages from 2.3 V to 5.5 V and outputs up to 50 mA to the B-side circuitry and external Class-B or Class-C SIM card.
电源电压DC 1.70V ~ 1.90V
输出接口数 6
通道数 2
针脚数 20
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.7V ~ 3.3V
电源电压Max 1.9 V
电源电压Min 1.7 V
安装方式 Surface Mount
引脚数 20
封装 QFN-20
封装 QFN-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 移动电话
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
