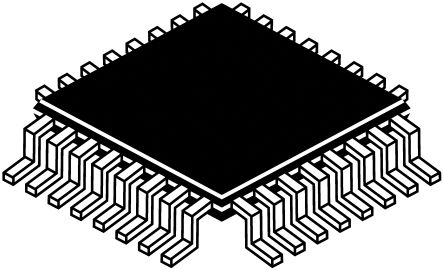

TEXAS INSTRUMENTS TUSB2046BIVFR 接口, USB, 集线器, 3.3 V, 3.6 V, LQFP, 32 引脚
USB 收发器,Texas Instruments
单端口和多端口 USB 收发器 IC,来自 Texas Instruments
### USB(通用串行总线),Texas Instruments
得捷:
IC HUB CONTROLLER USB 32LQFP
欧时:
### USB 收发器,Texas Instruments单端口和多端口 USB 收发器 IC,来自 Texas Instruments### USB(通用串行总线)USB 是一个串行总线,可支持主机和各种同时访问外围设备之间的数据交换。 有一个差分信号数据接口,用于传输和接收通信路径。 总线包括 5 V 时的电源。
贸泽:
USB 接口集成电路 4-Port Full-Speed Hub
e络盟:
TEXAS INSTRUMENTS TUSB2046BIVFR 芯片, 全速USB集线器, 4端口, 整卷
艾睿:
USB Transceiver 5TR 12Mbps 32-Pin LQFP T/R
Chip1Stop:
USB Transceiver 5TR 12Mbps 32-Pin LQFP T/R
Verical:
USB Transceiver 5TR 12Mbps 32-Pin LQFP T/R
Newark:
The TUSB2046BIVFR is a 4-port CMOS full-speed Universal Serial Bus Hub provides one upstream port and four downstream ports in compliance with the Universal Serial Bus USB specification as a full-speed hub. Because this device is implemented with a digital state machine instead of a microcontroller, no firmware programming is required. Fully compliant USB transceivers are integrated into the ASIC for all upstream and downstream ports. The downstream ports support full-speed and low-speed devices by automatically setting the slew rate according to the speed of the device attached to the ports. The configuration of the BUSPWR pin selects either the bus-powered or the self-powered mode. Configuring the GANGED input determines the power switching and over-current detection modes for the downstream ports.
Win Source:
4-PORT HUB FOR THE UNIVERSAL SERIAL BUS WITH OPTIONAL SERIAL EEPROM INTERFACE
电源电压DC 3.30V min
供电电流 40 mA
针脚数 32
数据速率 12.0 Mbps
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3.3 V
安装方式 Surface Mount
引脚数 32
封装 LQFP-32
长度 7 mm
宽度 7 mm
高度 1.4 mm
封装 LQFP-32
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
制造应用 消费电子产品, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TUSB2046BIVFR TI 德州仪器 | 当前型号 | 当前型号 |
TUSB2046BIRHBTG4 德州仪器 | 完全替代 | TUSB2046BIVFR和TUSB2046BIRHBTG4的区别 |
TUSB2046BIRHBRG4 德州仪器 | 完全替代 | TUSB2046BIVFR和TUSB2046BIRHBRG4的区别 |
