TMDSCNCD28035ISO概述
TEXAS INSTRUMENTS TMDSCNCD28035ISO. 子卡, 用于TMS320F28

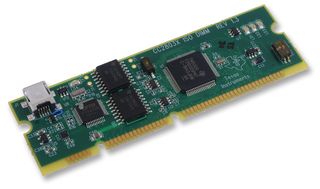

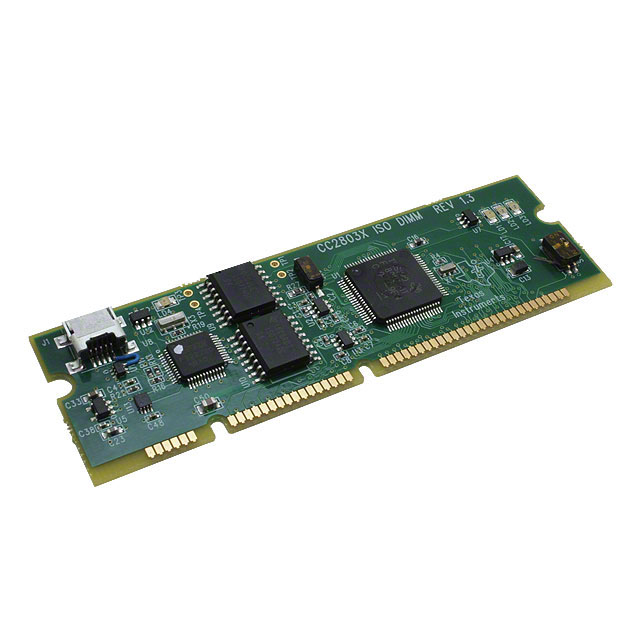

The is a Piccolo TMS320F28035 Isolated controlCARD, the C2000 controlCARDs are ideal products for initial software development and short run builds for system prototypes, test stands, and many other projects that require easy access to high performance controllers. The controlCARDs are complete board level modules that utilise an industry standard DIMM form factor to provide a low profile single board controller solution. C2000 controlCARDs typically use the DIM100 connector footprint providing access to the analog and digital I/Os of the C2000 MCU, while likewise providing a standard for easy interchange of C2000 MCUs in an application.
- .
- Piccolo TMS320F28035 MCU
- .
- Isolated USB JTAG interface XDS100v1
- .
- Standard 100 pin DIMM interface
- .
- Analog I/O, digital I/O and JTAG signals at DIMM interface
- .
- Single 5V power rail for full operation
