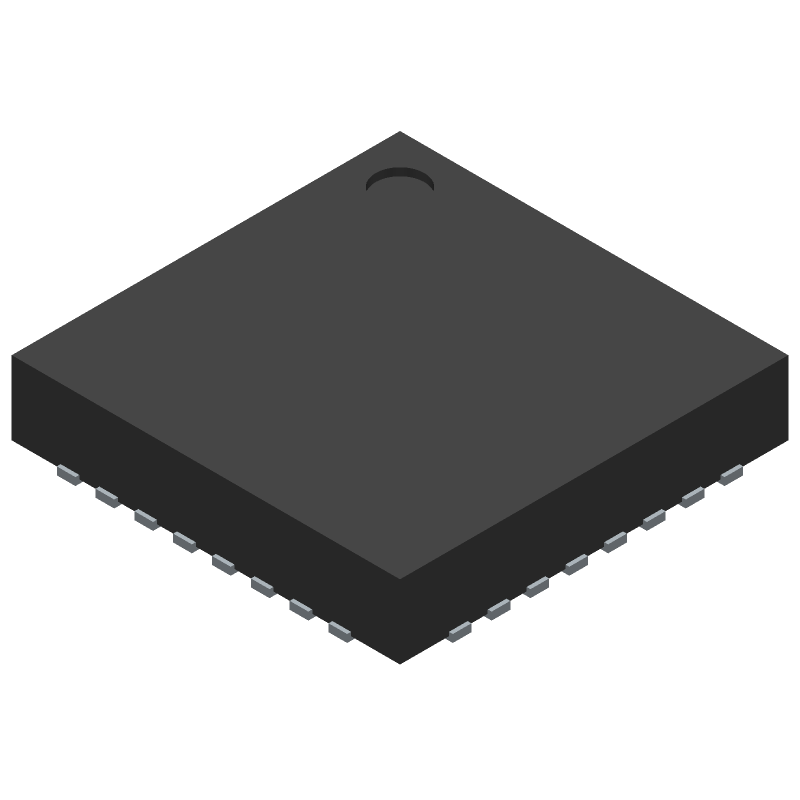

TUSB1210BRHBR图片1

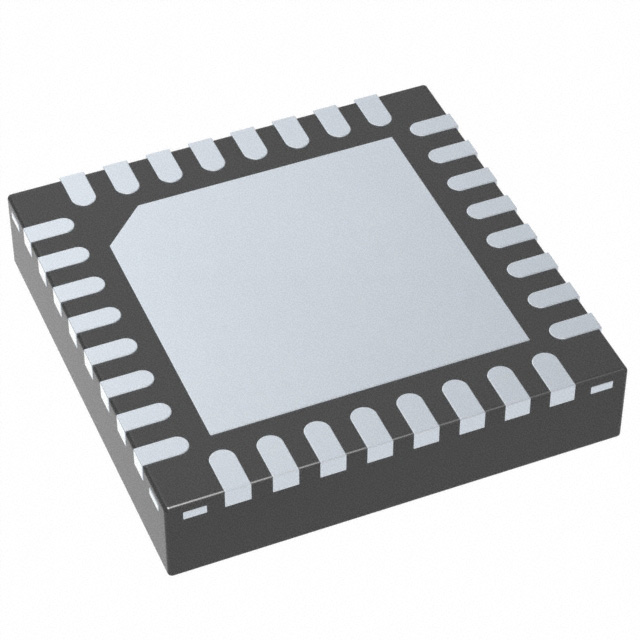

TUSB1210BRHBR图片2
TUSB1210BRHBR图片3
TUSB1210BRHBR图片4
TUSB1210BRHBR图片5
TUSB1210BRHBR图片6
TUSB1210BRHBR图片7
TUSB1210BRHBR图片8
TUSB1210BRHBR图片9
TUSB1210BRHBR图片10
TUSB1210BRHBR图片11
TUSB1210BRHBR图片12
TUSB1210BRHBR图片13
TUSB1210BRHBR概述

TEXAS INSTRUMENTS  TUSB1210BRHBR  接口, USB, USB收发器, USB 2.0, 2.7 V, 4.8 V, VQFN, 32 引脚 新

The TUSB1210 is a USB2.0 transceiver chip, designed to interface with a USB controller through a ULPI interface. The device supports all USB2.0 data rates high-speed 480 Mbps, full-speed 12 Mbps, and low-speed 1.5 Mbps, and is compliant to both host and peripheral modes. The device additionally supports a UART mode and legacy ULPI serial modes. TUSB1210 also supports the OTG Ver1.3 optional addendum to the USB 2.0 Specification, including HNP and SRP.

The DP/DM external component compensation in the transmitter compensates for variations in the series impendence in order to match with the data line impedance and the receiver input impedance, to limit data reflections and thereby improve eye diagrams.

Information in the following applications sections is not part of the component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality.

TUSB1210BRHBR中文资料参数规格
技术参数

电源电压DC 2.70V min

针脚数 32

数据速率 480 Mbps

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.7V ~ 4.8V

电源电压Max 4.8 V

电源电压Min 2.7 V

封装参数

安装方式 Surface Mount

引脚数 32

封装 VQFN-32

外形尺寸

高度 0.95 mm

封装 VQFN-32

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

TUSB1210BRHBR引脚图与封装图
TUSB1210BRHBR引脚图
TUSB1210BRHBR封装焊盘图
在线购买TUSB1210BRHBR
型号: TUSB1210BRHBR
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS  TUSB1210BRHBR  接口, USB, USB收发器, USB 2.0, 2.7 V, 4.8 V, VQFN, 32 引脚 新
替代型号TUSB1210BRHBR
型号/品牌 代替类型 替代型号对比

TUSB1210BRHBR

TI 德州仪器

当前型号

当前型号

TUSB1210RHB

德州仪器

完全替代

TUSB1210BRHBR和TUSB1210RHB的区别

DP83848VYB/NOPB

德州仪器

功能相似

TUSB1210BRHBR和DP83848VYB/NOPB的区别
