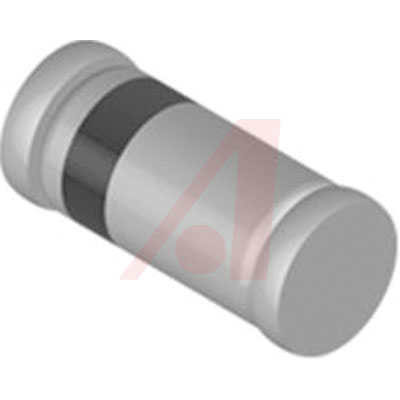

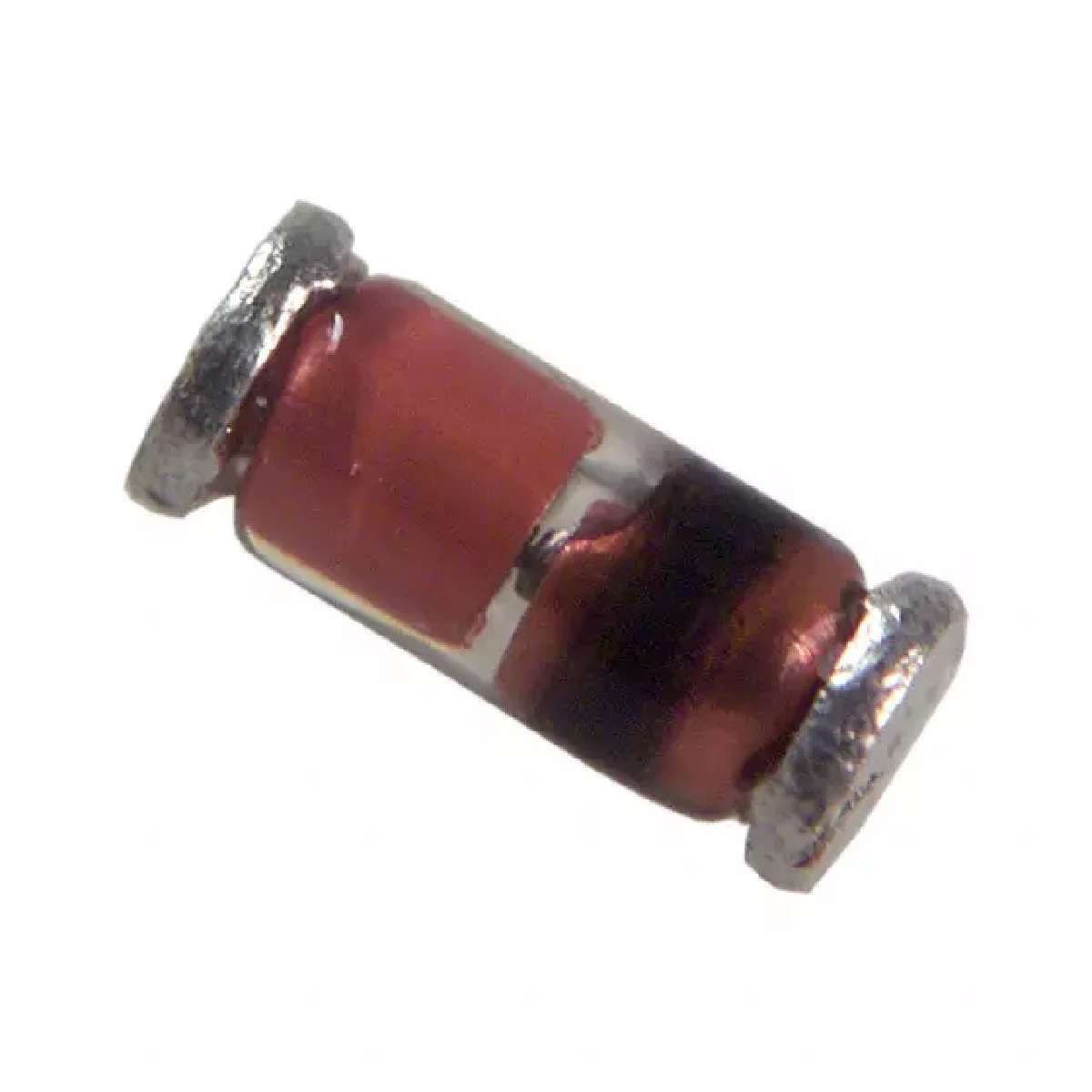

TZM5240B-GS08 稳压二极管 10V 500mW/0.5W SOD80/LL34-10V marking/标记 尖锐的反向特性/高稳定性
**Features:**
* Very Sharp Reverse Characteristic
* Very High Stability
* Electrical Data Identical with the Devices 1N5221B...1N5267B
* Low Reverse Current Level
* VZ Tolerance: ±5%
* Lead Pb-Free Component
* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC **Applications:**
* Voltage stabilization
得捷:
DIODE ZENER 10V 500MW SOD80
艾睿:
Diode Zener Single 10V 5% 500mW Automotive 2-Pin Mini-MELF SOD-80 T/R
Allied Electronics:
TZM5240B-GS08 Zener Diode, 10V 5% 500 mW SMT 2-Pin SOD-80
富昌:
TZM Series 10 V 3 uA 500 mW Small Signal Zener Diode - MiniMELF - SOD-80
Chip1Stop:
Diode Zener Single 10V 5% 500mW 2-Pin Mini-MELF SOD-80 T/R
Verical:
Diode Zener Single 10V 5% 500mW Automotive 2-Pin Mini-MELF SOD-80 T/R
Newark:
# VISHAY TZM5240B-GS08 Zener Single Diode, 10 V, 500 mW, SOD-80, 5 %, 2 Pins, 175 °C
容差 ±5 %
击穿电压 10.0 V
正向电压 1.1 V
耗散功率 500 mW
测试电流 20 mA
正向电流 200 mA
稳压值 10 V
正向电压Max 1.1V @200mA
额定功率Max 500 mW
工作温度Max 175 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-80
长度 3.7 mm
宽度 1.5 mm
高度 1.5 mm
封装 SOD-80
工作温度 175 ℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TZM5240B-GS08 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
TZM5240B-GS18 威世 | 类似代替 | TZM5240B-GS08和TZM5240B-GS18的区别 |
TZMC10GS08 威世 | 功能相似 | TZM5240B-GS08和TZMC10GS08的区别 |
